Schramm - Model TXD LoadSafe (US) -Drilling Contractor Rig

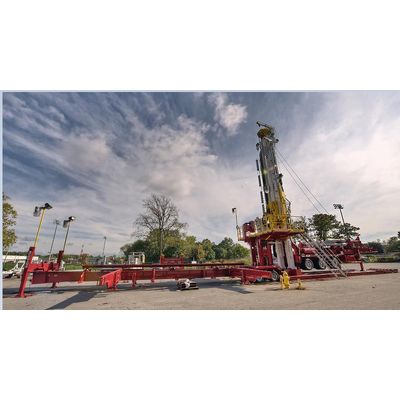

The TXD is the drilling contractor’s rig of choice for oil & gas sector directional drilling and large diameter deep hole water well drilling applications requiring 200,000 lb hoist capacity.

Thanks to its patented Telemast® design, the TXD offers Range III tubular capability in a fully portable, trailer mounted package that can be set up in a matter of hours upon arrival to the drilling site. In addition, its small footprint dramatically reduces environmental impact.

LoadSafe®, Schramm’s fully automated pipe handling system is an integral part of the TXD package. When combined with hydraulic roughnecks and power slips to meet specific site requirements, LoadSafe offers the highest degree of operator safety available in the industry today.

The TXD is the drilling contractor’s rig of choice for oil & gas sector directional drilling and large diameter deep hole water well drilling applications requiring 200,000 lb hoist capacity.

Thanks to its patented Telemast® design, the TXD offers Range III tubular capability in a fully portable, trailer mounted package that can be set up in a matter of hours upon arrival to the drilling site. In addition, its small footprint
dramatically reduces environmental impact.

LoadSafe®, Schramm’s fully automated pipe handling system is an integral part of the TXD package. When combined with hydraulic roughnecks and power slips to meet specific site requirements, LoadSafe offers the highest degree of operator safety available in the industry today.

Trailer

• Dedicated use tandem axle trailer is equipped with (8) 275 / 70R22.5 tires (44,400 lb or 20,140 kg rating) on 10 hole disc aluminum wheels
• 25K tandem axle air ride suspension, ABS brakes, DOT lights, 12 volt electrical system and 2 inch (51 mm) king pin

Tubular Handling

• Maximum tubular length 47 ft (14.33 m) Range III
• Maximum weight capacity 5,000 lbs (2,268 kg)
• Tubular diameter up to 30 inches (762 mm) with jaws removed
• Maximum jaw size 17 inches (432 mm)
• Slide travel 8 ft (2.4 m) Aluminium V-Pack, 55°C ambient design temperature

Skid Mounted Hydraulic Pipe Racks

• Racks hydraulically raise and lower to roll pipe, collars and casing into feed or discharge position
• Rack loading area width 166 inches (4.22 m), with adjustable height from 47 inches (1.19 m) to 77 inches (1.96 m) to allow  transfer of tooling from standard pipe hauling trailers
• Racks can be positioned between pipe transport trailers, flat bed trucks or staging racks
