Upet SA

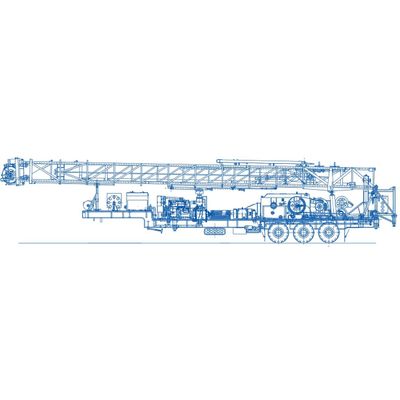

Upet - Model TD 125 CA A6 ( SR ) Trailer -Drilling Rig
FromUpet SA
The mobile rigs are intended for drilling vertical and inclined wells for oil, gas, geothermal, salt extraction. Mobile drilling rigs can also be used to repair wells in operation. The presented technical data are basic specifications that can be adapted to clients’ individual requirements.
Most popular related searches
- Number of lines in maneuvering system / of the travelling block 8
- Maximum rated static hook load ( 8 lines ) 1226 kN, ( 138 short tons, 125tf )
- Power rating 500 HP
- Power block Diesel engine CATERPILLAR C15 ACERT 540 HP / 2100 rpm, Hydromechanical transmission ALLISON M 5620 AR DB
- Mast height ( from the ground - under the crown block beam ) 37,2 m ( telescopic, 2 sections )
- Length of tubing handled double stands 18 … 20 m
- Rig floor height / substructure height under derrick floor 5 m
- Rotary table ( opening diameter ) 520,7 mm ( 20 ½” )
