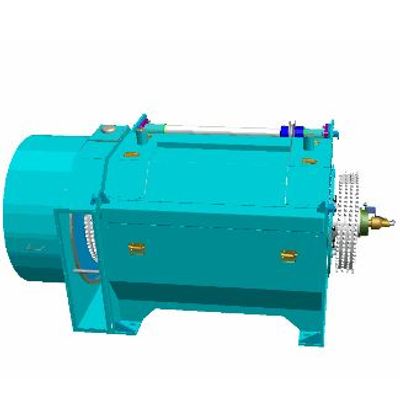

Upet - Model TF 20 - 1, WITH 1 DRUM ( TD 125 ) -Drilling Rig Drawworks Assembly

The basic functions of the drawworks are:

• Hoisting and lowering of the drill string, respectively of the tubing column by means of the maneuvering system;
• Supporting the drill string, or tubing column respectively, during drilling or workover operations;
• Production initiation works / putting into operation;
• Mast and substructure folding works;

• Maximum input power 500 HP
• Number of drums 1

MAIN DRUM

• Maximum main wire line pull 20 tf
• Diameter of the main wire line 26 mm ( 1 in )
• Dimensions of the wire line drum over the groove ∅ 441,6 mm x 823,5 mm
• Main drum clutch type AVB 800 x 250
• Main drum clutch - maximum moment 7450 Kg f.m, at P = 10 bar
• Brake sheaves dimensions 1120 x 265 mm
• Cooling of the brake sheaves with water
