Framework or Hoist to load and support 1650 lb. big bags of polymer
Polymer hopper and pan made of 304 Stainless Steel
Hopper with door and latch for untying the big bag
Fully automatic, continuous batching operation
Easily installed and often operational within one hour of arrival
Limited operator attention required
Single tank design with internal baffles and weir ensure proper mixing and aging of polymer
The service-friendly design includes: quick disconnect couplings, elevated frame, removable pump skid, anti-seized stainless steel fasteners, quick-disconnect hoses
Accurately meters, mixes, and ages dry chemical and water, creating a uniform solution
Administers a site-specific solution at an adjustable-rate
3/16” 304 construction welded inside and out
613-gallon capacity polymer tank
Level sensors provide automatic batching
2” solenoid valve supplies water flow to valves, wetting funnel, and venturis
Magnetic flow meter prevents batching in the event of a loss of water
Stainless steel conical wetting bowl creates a cyclone into which polymer is metered
One progressive cavity pump is mounted integrally to the unit
Standard 1 HP polymer pump rated for 0 to 12 GPM (5.5 GPM of fully activated polymer solution pumped from the system)
Built-in additional polymer pump port and complete pre-run wire allows for a second polymer pump

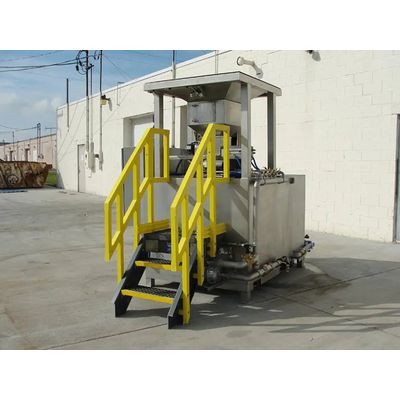

Model M300SSBB -Dry Polymer Pumping System

Features
