The DSV (Dilute Solution Viscosity) Manual Package is designed for precise viscosity measurements in research and industrial applications. The instrument is typically used to study polymer characteristics, understand material behaviors, and ensure formulation consistency. As part of Linkoptik's comprehensive product lineup, the DSV Manual Package is ideal for laboratories requiring thorough and detailed viscosity analysis without automation. Accompanied by extensive support materials, including demo videos and application notes, this package is vital for understanding principles related to dilute solutions. Access to additional resources through their learning platform ensures users can troubleshoot effectively, optimize use, and deepen their technical knowledge. The package serves a broad spectrum of scientific communities, including chemical, pharmaceutical, and materials science industries, aiming for accuracy and reliability in complex viscosity assessments.
Most popular related searches
The DSV Manual Package is a basic package with automated sample injection by the syringe pump and automated data capture by the computer.

​The user is responsible for weighing the sample, dispensing solvent, dissolving the sample, and switching the syringe pump between sample vials.  The DSV system will analyze the sample and record the viscosity data.  It provides fast, precise viscosity measurements with greater operator safety than conventional glass tubes.

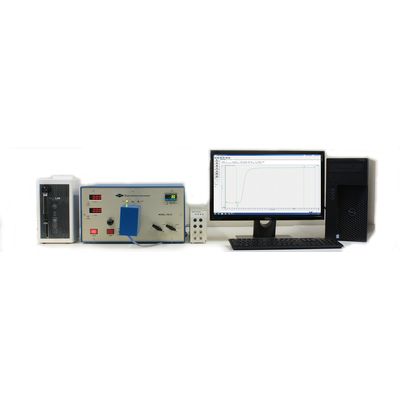

​The Manual package includes:
  • Relative Viscometer
  • Single syringe pump
  • Degasser
  • Data system
  • Installation and training



Measuring Principle: Dual capillary bridge
Measuring Ranges: 0-20 cp (mPa s) or 1-10 Relative Viscosity
Sensitivity: 0.0001 Specific Viscosity
Precision of RV Measurement: +/- 0.5% relative standard deviation
Typical Flowrate: 1-3 ml/min
Typical Analysis Time: 2-4 min
​Typical Sample Volume: 30-35 ml for two injections
Capillary Dimensions: 0.02" ID x 18"
Shear Rate: 1000/sec
Temperature Range: 15-150 degrees C
Output Signals: 0-10 V
Dimensions: 17.5" W x 17.5" D x 9.5" H
Weight: 40 lbs
Power Requirements: 120 V, 50-60 Hz, 5 A
