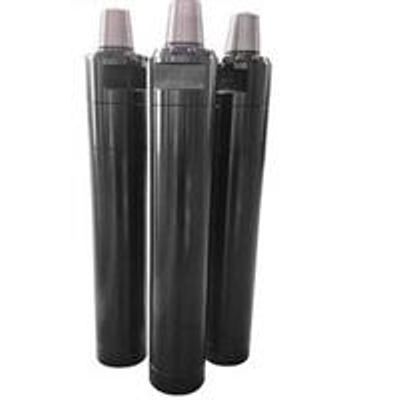

Sollroc - Model SC90K-QL & QL80 -DTH Shank Hammer
SC90K-QL DTH hammer is SOLLROC "K" series (high penetration hammer for minging) and widely used for varies applications, including construction drilling, geothermal drilling, quarry drilling.
Most popular related searches
- Valveless air distribution ensures smooth working.
- Piston design and harden wear part ensure strong wear-resistance
- Minimize the energy loss, high penetration, lower air and oil consumption.
- Fewer internal parts minimize the maintain and replace the part requirements.
- Multi-start threads on top sub and drive chuck achieved easy disassembly.
- Bit shank QL80
- Top sub thread API 4 1/2" REG
- Length (less bit) 1385mm (54.5 in)
- External diameter 203mm (8 in)
- Weight (less bit) 240kg (530lbs)
- Impact rate at 17 bar 20HZ
- Hole range 216mm-275mm (8.5 in -10.8 in)
- Working pressure 10-25 bar (145-435 PSI)
- Speed recommended 20-45 rpm
- Pull force recommended 21 KN
