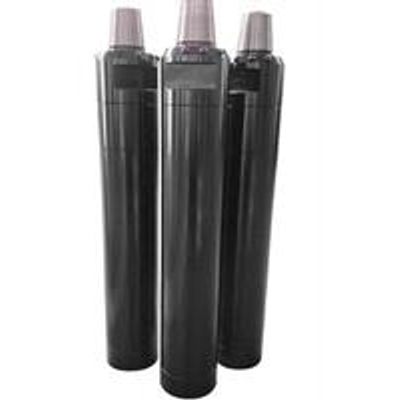

Sollroc - Model 5C80K-M & M80 -DTH Shank Hammer
SC80K-M DTH hammer is SOLLROC "K" series (high penetration hammer for minging) and widely used for varies applications, including construction drilling, geothermal drilling, quarry drilling, especially for surface drilling in mines.
Most popular related searches
DTH hammer
wear resistance
construction drilling
hammer drill bit
quarrying
surface mining
mining drill
mining drilling
drill bit
drilling bit
- Valveless air distribution ensures smooth working.
- Piston design and harden wear part ensure strong wear-resistance
- Minimize the energy loss, high penetration, lower air and oil consumption.
- Fewer internal parts minimize the maintain and replace the part requirements.
- Multi-start threads on top sub and drive chuck achieved easy disassembly.
- Bit shank M80
- Top sub thread API 4 1/2" REG
- Length (less bit) 1345mm (53 in)
- External diameter 185mm (7.28 in)
- Weight (less bit) 186kg (411 lbs)
- Impact rate at 17 bar 25HZ
- Hole range I95mm-254mm (7.68 in -10 in)
- Working pressure 10-25 bar (145-435 PSI)
- Speed recommended 20-45 rpm
- Pull force recommended 17 KN
