Ionix HotSense - Model 150 -Dual Element
FromIonix AT
Dual element ultrasonic transducer for on-stream thickness, corrosion and erosion monitoring for use in applications across refining, oil & gas, energy, nuclear, aerospace, and process sectors.
Most popular related searches
ultrasonic monitor
flaw detection
protective coating
coating thickness monitoring
ultrasonic sensor
ultrasonic transducer
thickness monitoring
automatic monitoring
erosion monitoring
temperature monitoring
- Low-cost dual element ultrasonic monitoring sensors for widespread distribution.
- Through coating measurements without removal of protective coatings.
- Installation on all sizes of pipes and vessels.
- Built on the award winning HotSense™ ultrasonic platform next generation sensors powered by the proprietary Ionix HPZ piezoceramic.
- -55 to +150 °C [-67 to +302 °F] continuous measurement temperature range.
- Permanent or semi-permanent installation in extreme or hazardous environments.
- Intrinsically safe certified to Zone 0.
- Manual or automated data collection.
- Produce better wall loss data and trends with installed UT probes.
- Low cost dual element ultrasonic monitoring sensors for widespread distribution and area coverage.
- Through coating measurements without removal of protective coatings.
- Installation on all sizes of pipes and vessels.
- Dual element configuration for increased sensitivity of pitting damage mechanisms .
- Built on the award winning HotSense™ ultrasonic platform. Next generation sensors powered by the proprietary Ionix HPZ piezoceramic.
- -55 to +150 °C [-67 to +302 °F] continuous measurement temperature range.
- Permanent or semi-permanent installation in extreme or hazardous environments.
- Intrinsically safe certified to Zone 0.
- Manual or automated data collection.
Deployment Flexibility
- Deploy on to live assets without shutdown or isolation.
- Options for vessels and pipes NPS 52″ and above.
- Integrated magnetic fixing for ease of installation on ferrous assets.
- Epoxy fixings for large pipes and vessels.
- Universal strap fixing for small pipe diameters and semi-permanent installation.

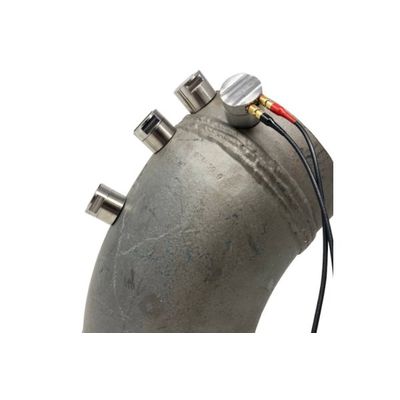

- Deploy around the circumference, spine or survey grid of piping.
- Fixed UT sensors provide increased measurement precision and collection frequency for reliable and real-time corrosion trending.
- Optimise Asset Integrity and Performance Management (AIM/APM) programmes with accurate and reliable wall loss data.
- Reduce operational costs and maximise production margins.
- Data collection using standard UT flaw detectors with Measurement Hub.
- Autonomous data collection and data direct to control centre with WirelessHART Caliperay.
- Wide temperate range installed monitoring probe with deployment flexibility without coating removal.

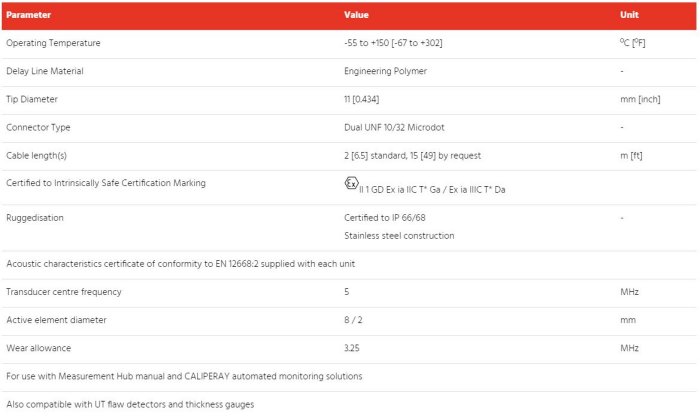

- Dual element, compression wave.
- Accurate and precise thickness measurements from fixed installed probes.
- Detect and trend wall loss rates with increased precision.

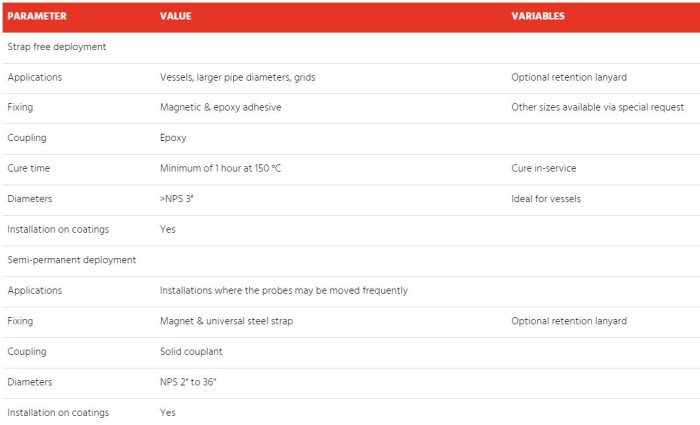

- Flexible installation and coupling solutions for deployment on any asset. Magnetic fixtures support installation on ferrous assets with fixation and coupling achieved with epoxy or polymer pad and strap.
- 30mm probe diameter allows for deployment in close proximity on grids or circumferentially around an asset.
- Installation without coating removal is ideal for upstream applications. Measurements may be made through coatings.
- For use with HotSense™ Measurement Hub manual and CALIPERAY automated monitoring solutions.
- Compatible with industry standard UT flaw detectors and thickness gauges.
