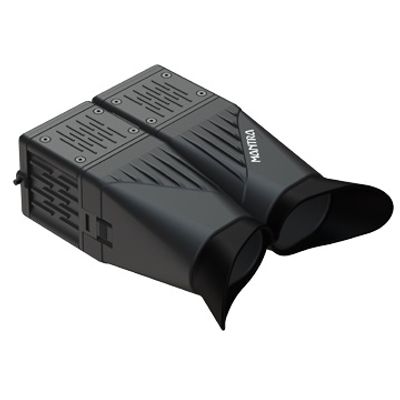

Mantra - Model MATISX -Dual IRIS Scanner

Mantra’s MATISX is an adjustable interpupillary & easy-to-operate dual-iris scanner device used to capture the double iris images of an individual simultaneously. Designed with an advanced biometric technology, MATISX is the next-generation iris scanner device compliant with ANSI NIST and ISO image interchange format. The innovative dual iris scanner MATISX offers ease of convenience, high reliability and long-lasting durability. The dual iris sensor presents multiple compelling functionalities such as auto capture feature for quick & effortless dual iris recognition, adjustable interpupillary distance range, immunity to ambient lighting and much more.

Simultaneous Capture : Dual IRIS Capture
IRIS Diameter : > 210 Pixel
Spatial Resolution : > 60 % @ 4.0 Lp/mm
Pixel Resolution : > 20 Pixel/mm
Image Margins : Left & Right >=0.5x IRIS Diameter, Top & Bottom >=0.25x IRIS Diameter
Pixel Depth : 8 Bits/Pixel (256 Gray Level)
Imaging Wavelength : 700 - 900 nm
Frame Rate : >=10 Frames/Sec
Scan Type : Progressive
Sensor SNR : > 36 dB
Capture Mode : Auto Capture with Built-in Quality Check
Illumination : Near Infra Red (NIR)
Capture Distance : 100mm from the Front of Camera mirror
Capture Volume (WxHxD) : 30 x 22.5 x 15 mm
Exposure Time : < 33ms

Interface : USB2.0 High Speed (USB-IF Certified)*
Operating Voltage : 5V +/- 5%
Current Consumption : Operating :- < 350 mA (Max); Stand By :- < 160 mA (Max)
Operating Temperature : 0 to 50 °C
Operating Humidity : 10-90% RH, Non-Condensing
ESD Protection : +/-4kV (Contact Discharge), +/-8kV (Air Discharge)
Device Dimension : 185 x 145 x 62 mm
Device Weight : 0.41Kg

Operating System: Windows x86 and x64, Linux

Biometric Data Interchange Format : ISO 19794-6 for IRIS Image, ISO 29794-6 for image quality
EMI / EMC Compliance : CE & FCC Part 15B Class B*
Environmental, Health and Safety : RoHS*
Safety : Exempt Group per IEC 62471:2006-07, IS13252 (Part 1)*
Ingress Protection Rating : IP65*
Device Driver : WHQL Certified
