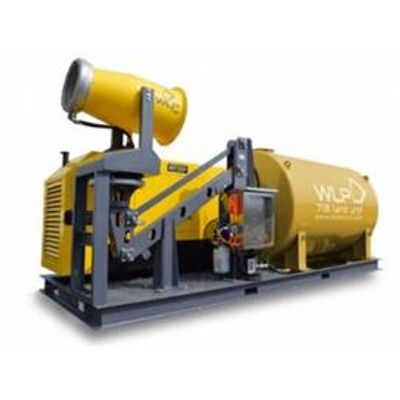

WLP - Model 718 Tank -Dust Control Machine

Dimensions (mm): L: 1250, W: 1200, H: 2600. Weight: 760kg. Range of rotation: 340°. Elevation: -20° ÷ +45°. Theorical throw distance: 80-90m. Installed power: 18,5 kW. Pump (optional): 4 kW - 7,5 kW. Power supply: 3P+T 63A 400 Volts 50 Hz. Pressure: min 5 bar, recommended 10-15 bar max 35 bar. Protection rating: IP 55. Noise level: < 93 Lwa. Nozzles: 150, standard Acciaio Inox. Crowns: 3. Water filter: 200 micron, Inox. Water consuption - 4kW (5-10-15 GPH).
