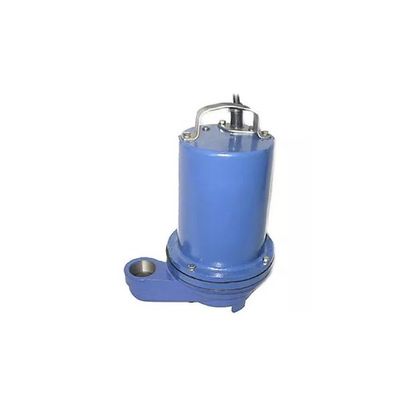

Power-Flo - Model PFSTEP Series -Effluent Pumps
General purpose pump for residential, light industrial and commercial sump or effluent applications.
Most popular related searches
- DISCHARGE: 2” NPT, Female, Vertical
- LIQUID TEMPERATURE: 104°F Continuous
- MOTOR HOUSING/ VOLUTE: Cast Iron, Class 30
- SEAL PLATE: Cast Iron, Class 30
- IMPELLER: Single vane enclosed, Polypropylene with stainless steel insert
- SHAFT & HARDWARE: Stainless steel
- PAINT: Air dry enamel
- SQUARE RINGS: Buna-N
- SEAL: Outboard, Single mechanical, 5/8″, Oil Filled Chamber, Carbon/Ceramic/Buna-N
- UPPER BEARING: Single row, ball, oil lubricated
- LOWER BEARING: Single row, ball, oil lubricated
- POWER CORD: 20Ft., SJTOW, 14/3 Cord with Piggy-Back plug. Fast disconnect design
- MOTOR: Class B Insulation, Oil Filled
- SINGLE PHASE: Permanent Split Capacitor (PSC), Includes overload protection in motor
- WARRANTY: 2 year
- 1/2Hp, 3450Rpm, 60Hz, 115 & 230 Volt, 1 Phase
- 2″ Discharge, 3/4″ Spherical Solids,
- Manual Operation
- Max Flow: 76 GPM, Shut Off: 79Ft
