Komax - Model KTB E Endsplice -Electric Bundle Machine
The KTB E Endsplice electric bundle machine, based on the proven technology of the KTB E Plus, is used for end-splice insulation and fixing of pre-stripped cable ends. Easy handling – high performance: The KTB E Endsplice was specially developed for insulating end splices. Based on the tried-and-tested technology of the KTB E PLUS, it ensures short process times and minimal tape usage. As soon as the cable is introduced into the machine, its thickness is detected automatically. The KTB E Endsplice can then dispense the optimum length of tape. If another wire set is inserted, the machine does not have to be set up again. It is also possible to program the length of tape and the number of times the tape needs to be wrapped around the splice. This means that the KTB E Endsplice can ensure a consistently high quality standard and is indispensable in the professional production of cables for the automotive industry.
Highest quality and process reliability

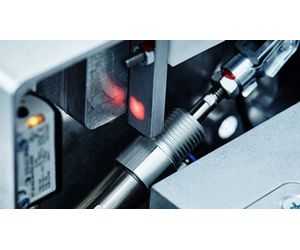

Automatic diameter detection reduces operator influence. Efficient and stress-free handling of cables and welded joints. "

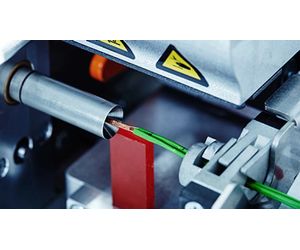

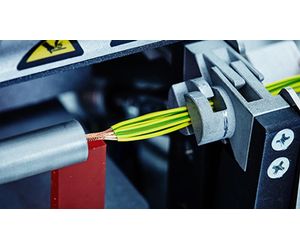

Simple and reliable positioning: A sleeve serves as a limit stop to make sure that the tape is always applied at the right position.
Up to 50% savings in production time compared to manual production. Handling is simple, thanks to automated process steps.
Up to 80% less material costs compared to heat shrink tubing or caps. Tape consumption is calculable thanks to the programmable number of windings.

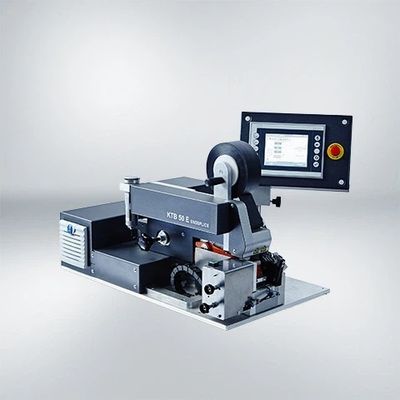

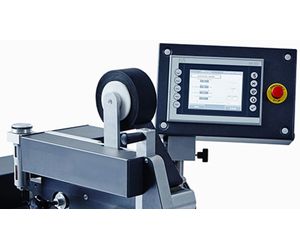

KTB E Endsplice
Metric
- Machine type: Benchtop machine
- Screen diagonal: 145 mm
- Current: Yes
- Control box: integrated
- Pneumatics: Yes
- Width: 430 mm
- Dimensions/height: 475 mm
- Dimensions/depth: 670 mm
- Total recommended space requirement (width x depth): 1430 x 1670 mm
- Weight: 45 kg
- Control voltage: 24 V
- Fuse protection: 16 A
- Connection power: 1200 W
- Electrical connection: 1×230V, 50/60Hz (range 180 - 250 V); 1×115V, 50/60Hz
- Recommended operating pressure ±0.5bar/7.25psi: 6 bar
- Number of tape layers/bundling, min.: 2
- Number of tape layers/bundling, max.: 3
- Adjustable gripper force: No
- Transverse tension: No
- Adjustable transverse tension: No
- Diameter detection: Yes
- Integration into welding table: No
- Device interface (USB): Yes
- Network connection: Yes
- MES capable: No
- Tape end sensor: optional
- Ejector: No
- Input for barcode scanner: No
- Oiler (for the blade): Yes
- Positioning limit stop: No
- Tape pull-off support: No
- Tape pull-off: No
- Taping diameter, min.: 2 mm
- Taping diameter, max.: 10 mm
- Tape width, min.: 38 mm
- Tape width, max.: 50 mm
- Tape detection sensor: No
- Tape roller outer diameter, max.: 180 mm
- Ambient temperature max.: 40 °C
- Ambient temperature min.: 10 °C
- Humidity, non-condensing: 5 - 95 %
Imperial
- Machine type: Benchtop machine
- Screen diagonal: 5.7 in
- Current: Yes
- Control box: integrated
- Pneumatics: Yes
- Width: 16.9 in
- Dimensions/height: 18.7 in
- Dimensions/depth: 26.4 in
- Total recommended space requirement (width x depth): 56,3 x 65,7 in
- Weight: 99 lb
- Control voltage: 24 V
- Fuse protection: 16 A
- Connection power: 1200 W
- Electrical connection: 1×230V, 50/60Hz (range 180 - 250 V); 1×115V, 50/60Hz
- Recommended operating pressure ±0.5bar/7.25psi: 87 psi
- Number of tape layers/bundling, min.: 2
- Number of tape layers/bundling, max.: 3
- Adjustable gripper force: No
- Transverse tension: No
- Adjustable transverse tension: No
- Diameter detection: Yes
- Integration into welding table: No
- Device interface (USB): Yes
- Network connection: Yes
- MES capable: No
- Tape end sensor: optional
- Ejector: No
- Input for barcode scanner: No
- Oiler (for the blade): Yes
- Positioning limit stop: No
- Tape pull-off support: No
- Tape pull-off: No
- Taping diameter, min.: 0.08 in
- Taping diameter, max.: 0.39 in
- Tape width, min.: 1.95 in
- Tape width, max.: 1.5 in
- Tape detection sensor: No
- Tape roller outer diameter, max.: 7.1 in
- Ambient temperature max.: 104 °F
- Ambient temperature min.: 50 °F
- Humidity, non-condensing: 5 - 95 %
