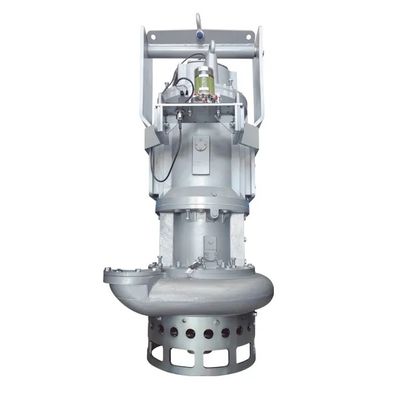

Dragflow - Model EL180 Basic Version -Electric Dredging Pump
The EL180 is an electric pump with high abrasion resistance and can handle material concentrations up to 70%. It is the ideal solution for industrial, mining, and dredging applications in other fields, guaranteeing maximum efficiency and productivity.
- High efficiency agitator, reversible and high chrome for long life and continuous flow lifting of deposited sediments.
- Low rotation speed: reduced wear and long term efficiency.
- Rugged and heavy duty construction: highly resistant components for loaded and abrasive mixes.
- Delivery: 200 mm
- Capacity: 350 m³/h
- Head: 40 m
- Weight: 2750 kg
- Power: 130 kW
- Solid handling: 60 mm
- RPM (50 Hz): 980
- By choosing our electric dredging pumps, you can benefit from cutting-edge systems equipped with world-class technologies and specifically designed to deliver exceptional performance in terms of efficiency and durability.
- These electric pumps for dredging operate at low rotational speeds, feature optimal sealing configuration, and high resistance to abrasion, allowing them to work in complex conditions and effectively handle mixtures of liquids and solids.
- Dragflow electric dredging pumps are available in 50 and 60 Hz versions. CE certified, and also available with UL/CSA certification. The larger models reach a capacity of up to 4,000 m3/h. with the ability to pump solids up to 120 mm in size.
By using Dragflow`s electric dredging pumps, it is possible to optimize dredging operations in various application areas, such as beach replenishment, pumping sediments in mining basins, and removing solid residues in water treatment plants.
Our electric dredging systems are compact, versatile, and capable of covering a wide range of capacities and head pressures. We offer small, medium, and large electric dredging pumps, providing numerous solutions for every need and offering a variety of customization options.
