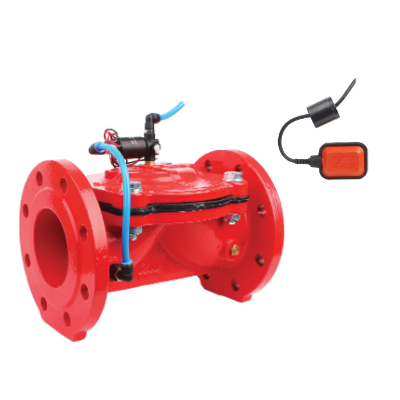

BKV Valve - Model GF10EFV -Electric Float Level Control Valve
BKV 210 Series Horizontal Float Level Control Valves provide automatic water level control for tanks or reservoirs. The main valve is controlled by an electric float. When the water level drops, the float sends a signal to the solenoid coil on the main valve, causing the valve to open; when it fills, it closes. When the set level is reached, the signal sent to the coil is cut off, and the valve closes, maintaining a constant tank level.
Most popular related searches
level controller
control valve
float control valve
water level control
water level controller
drinking water system
flow modulator
drinking water
float switch
float valve
- Operates using mains pressure and requires no extra energy
- Easy maintenance
- Can be controlled at different voltages
- Manual on/off
- Low energy consumption
- Maintenance can be performed without removing it from the pipeline.
- Mount the electric float switch, indicated by “e”, securely according to the water level in the tank or reservoir and connect its wires to the control panel.
- Connect the wires of the solenoid pilot valve, indicated by “a”, to the control panel appropriately.
- Turn on the water.
- The valve will open when the solenoid is energized and close when it is de- energized.
- Agricultural irrigation
- Industrial Applications
- Irrigation and drinking water systems
- Closed position: The valve is closed by applying pressure to the diaphragm through fluid pressure.
- Open position: Internal line pressure moves the diaphragm upwards, allowing flow.
- Modulation position: The diaphragm remains in a fixed position by balancing the internal and external line pressures.
