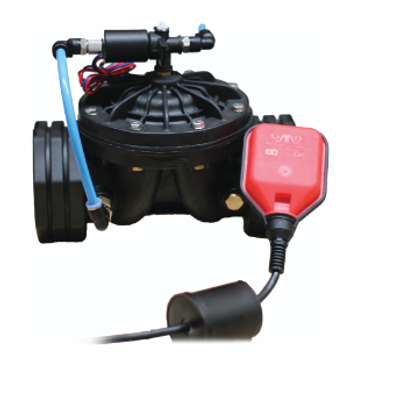

BKV Valve - Model GP10EFV -Electric Float Level Control Valve
The Electric Float Level Control Valve is a valve that continuously monitors the water level using an electric float placed inside the tank. When the bottom water level drops below the desired value, the electric float sends a signal to the solenoid coil on the main valve. This causes the valve to open completely and keep the reservoir continuously hill. When the water level reaches the maximum level, the electric switch sends another signal to the solenoid coil, and the valve closes. The valve can be operated horizontally or vertically in the system.
Most popular related searches
level controller
control valve
float control valve
drinking water system
electric control valve
flow modulator
water level monitoring
drinking water
float switch
float valve
- Operates wilh mains pressure, no extra energy required
- Easy maintenance
- Adjustable opening/dosing speed (optional)
- Can be controlled at different voltages
- Manual opening/closing
- Low energy consumption
- Maintenance can be performed without removing it from the pipeline.
- Mount the electric float switch, indicated by "b", securely according to the water level in the tank or reservoir and connect its wires to the control panel.
- Connect the wires of the solenoid pilot valve, indicated by "d", to the control panel appropriately.
- Turn on the water.
- The valve will open when the solenoid is energized and close when it is de-energized.
- Agricultural irrigation
- Industrial applications
- Irrigation and Drinking Water Systems
- Closed position: The valve is closed by applying pressure to the diaphragm through fluid pressure.
- Open position: Internal line pressure moves the diaphragm upwards, allowing flow.
- Modulation position: The diaphragm remains in a fixed position by balancing the internal and external line pressures.
