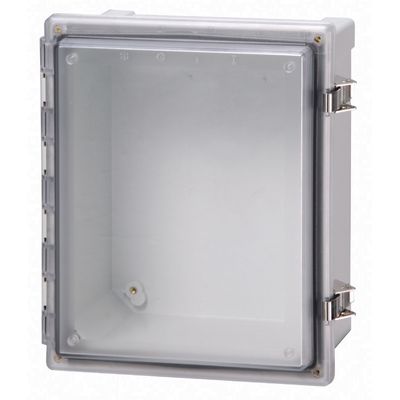

Fibox - Model AR664CHLT -Electrical Enclosure

Including: Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

Most popular related searches

electrical enclosure

electrical insulation

switchgear

Part #:8561031
Dimensions:6 x 6 x 4
Ratings:UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13: IP66; IP67;; IK09;

Product

Product nr: 8561031
Description: Hinged transparent cover enclosure with plastic quick release latch
Remarks: PC Enclosure, Hinged Transparent screw cover w/Plastic quick release latch
Package: 1
Unit: Piece
ETIM: EC000261 Enclosure/Switchgear cabinet (empty)

Dimensions

Height (inch): 6
Width (inch): 6
Depth (inch): 4
Height (mm): 152.4
Width (mm): 152.4
Depth (mm): 101.6
Materials

Material: Polycarbonate

Base color: RAL 7035 -light grey
Cover color: Transparent
Gasket material: Polyurethane

Temperatures

Temperature °F (continuous): -40 … 175
Temperature °C (continuous): -40 … 80

Ratings

UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
UL 1741 Compliant
Ingress Protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK09;
Electrical insulation: Fully insulated
Halogen free (DIN/VDE 0472, Part 815): Yes
UV resistance: UL 508
Flammability Rating: UL94-5VA (f1)/ Cover: UL94-V0 (f1)
Glow Wire Test (IEC 60695): 960 °C
