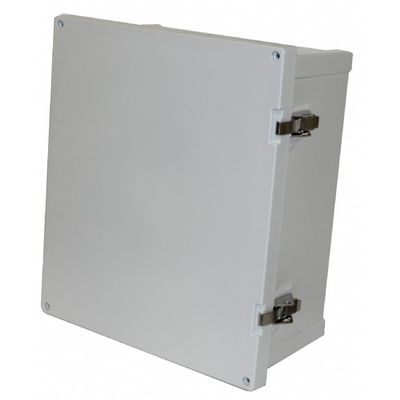

Fibox - Model AR864CHFL -Electrical Enclosure

Including: Hinged flat cover enclosure, with plastic latch. Base with 10-32 brass inserts, cover with formed in place PUR gasket, stainless hinge pin. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting.

More about this product— External link

Most popular related searches

electrical enclosure

electrical insulation

Part #:8561620
Dimensions:
Ratings:UL Type NEMA 4, 4X, 6, 6P, 12, 12K and 13: IP66; IP67;; IK09;

Product

Product nr: 8561620
Remarks: PC Enclosure, Hinged Opaque Flat Cover with PPlastic Latch
Package: 1
Unit: PIece
ETIM:

Dimensions

Height (inch): 8
Width (inch): 6
Depth (inch): 4
Height (mm): 203.2
Width (mm): 152.4
Depth (mm): 101.6

Materials

Material: Polycarbonate
Base color: RAL 7035 - Light Grey
Cover color: RAL 7035 - Light Grey
Gasket material: Polyurethane

Temperatures

Temperature °F (continuous): -40 … 175
Temperature °C (continuous): -40 … 80

Ratings

UL/cUL Type: UL/cUL 4, 4X, 6, 6P, 12, 12K and 13
UL 1741 Compliant
Ingress Protection (EN 60529): IP66; IP67;
Impact Resistance (EN 62262): IK09;
Electrical insulation: Fully insulated
Halogen free (DIN/VDE 0472, Part 815): Yes
UV resistance: UL 508
Flammability Rating: UL94-5VA (f1)
Glow Wire Test (IEC 60695): 960 °C
