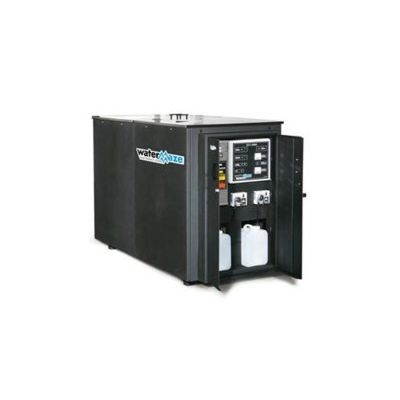

Model EC1-300A -Electrocoagulation

Totally enclosed Cabinet Design eliminates the need for towers, tanks and exposed pipes and wiring; also provides protection against the elements, if installed outdoors; optional thermostat-controlled Electric Heater along with insulated side panels reduce the risk of components freezing during unexpected cold snaps.

Removable Side Panels with quick-release latches allow for easy service and installation access; steel panels are protected by a weather-resistant Zinc Epoxy Powder Coat finish.

Simple and Automated Operation with intelligent control circuitry reduces operator training and the need for constant monitoring for maintenance.

Integrated Design accommodates interfacing of EC1-300A with other pre- and post-treatment equipment to create a totally self-contained wash-water treatment system; pH control may be required in pre-treatment

Metal Double Doors on front side protect Nema 4 electrical controls from overspray and are hinged for easy access and locking against unauthorized entry.

Built by ISO-9001 Certified manufacturer that has complied for more than a decade to the internationally recognized ISO standards for quality manufacturing.

Minimal cost in Consumables as the EC cells and low-cost polymer only need to be replaced or replenished periodically depending on the application.

Water Tank is located inside and is made of non-corrosive stainless steel.

ETL Certified to UL 73 safety standards.

In addition to an on-board, in-feed pump, the EC1-300A includes a Transfer Pumping System, which discharges processed water (for recycle or discharge) as well as monitors and controls fresh-water makeup and excess water discharge.

Water is injected with UV Ozone to oxidize bacteria and reduce odor

Internal tanks feature sloped floors and automatic purge system for easy sludge removal.
