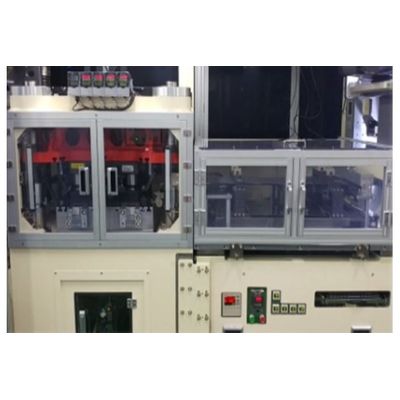

PNT - Electrode Notching Machine
PNT’s Electrode notching machine is a facility that cuts continuously coated electrodes in the horizontal direction and makes tabs into electrode sheets. The company has a sales record of supplying more than 60 die-pressing notching machines to large domestic companies.
Most popular related searches
- Production Speed : 250cycles/min↑
- Line Speed : 72m/min↑
- Electrode Thickness : 100? ~ 500?
- Notching Type : Die notching cam drive, up and down drive
- Press stroke: upper 10mm, lower 30mm
- Die Fixing Type : Clamp type
- Lubricant : Automatic
- Foreign Body Prevention : Fan-Filter Unit (FFU)
- In-line Defect Inspection : Vision camera inspection and labeler (which utilizes artificial intelligence to accurately detect and classify defects)
- Dimension : 10m(L) * 3m(W) * 2.5m(H)
