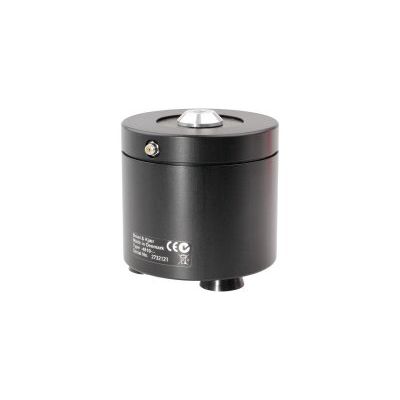

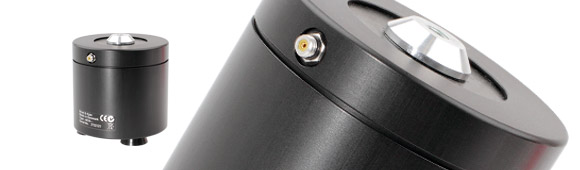

Brüel & Kjær - Model Type 4810 -Electrodynamic Mini-Shaker
An electrodynamic mini-shaker with a permanent magnetic field designed for motive force generator in mechanical impedance measurements where only smaller forces are required. Type 4810 is optimised to obtain full output force when used with Power Amplifier Type 2718.
Most popular related searches
- Calibration of accelerometers
- Vibration testing of small objects
- Educational demonstrations
- Mechanical impedance measurements
- Force rating 10 N (2.25 lbf) sine peak
- Frequency range DC to 18 kHz
- First axial resonance above 18 kHz
- Maximum bare table acceleration 550 m/s2
- Force Rating: 10 N
- Frequency Range: DC to 18 kHz
