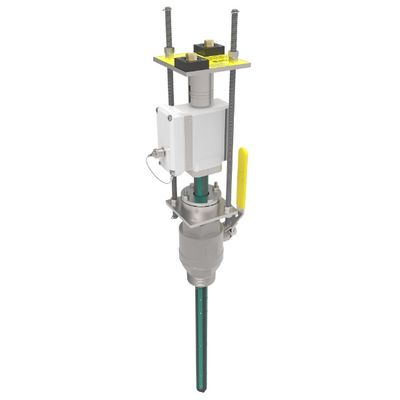

McCrometer FPI Mag Plus - Model 3000 -Electromagnetic Flow Meter

The unique combination of reliability, ease of installation and total cost savings make the FPI Mag Plus 3000 the perfect choice for municipal water and wastewater effluent applications and flow media.

McCrometer’s multi-electrode design and unique operating principle, delivers accuracy unmatched by other insertion meters and rivals the performance of full-bore mag meters.

This next generation of insertion technology makes flow monitoring efforts simple and precise.

The FPI Mag Plus 3000 is designed for the following applications:

• Remote distribution water mains
• Remote leakage detection
• Municipal water and wastewater treatment
• Effluent wastewater
• Wells and booster stations
• Feed Water
• Campus Chill Water Mains
• Campus Drinking Water Distribution
• And more

Accuracy that Meets or Exceeds Industry Standards

The FPI Mag Plus 3000 provides an astonishing ±1% accuracy on a battery powered, remote installation meter with AMR/AMI and telemetry ready outputs. When every drop counts look no further than the FPI Mag Plus 3000 for your remote flow monitoring needs.

Easily Connects to AMI / AMR Systems

The FPI Mag Plus 3000 is available in AC/DC with battery backup or battery / solar powered options for forward and bi-directional flow sensors, enabling installation in remote applications without access to reliable power. The Smart Output feature allows the FPI Mag Plus to connect to AMI / AMR systems through an encoded digital output. Also the FPI Mag Plus 3000 is prewired for use with our SmartTrax Telemetry system to bring your measurements conveniently to your database.

Hot Tap Insertion Design Allows for Simple Installation and Maintenance

The insertion design allows for easy, hot tap installation, which allows the meter to be installed without interrupting service, de-watering lines, cutting pipe, welding flanges, or inconveniencing customers. The meter may easily be removed, inspected, and returned to service without the need for a time consuming shut down for regular maintenance procedures.

No Moving Parts

The FPI Mag Plus 3000 has no moving parts and a single-piece probe design. The multi-electrode water flow sensor contains nothing to wear or break and is generally immune to clogging by sand, grit or other debris.

Robust Constructions

The sensor body is made from heavy-duty 316 stainless steel for maximum structural integrity and is hermetically sealed and protected by NSF certified 3M fusion-bonded epoxy coating. Electrodes are constructed from either stainless steel or optional Hastelloy to handle all your water flow needs. Our standard epoxy coating is rated up to 140F while our HT (High Temperature) option increases our capabilities to 200F while still maintaining our NSF certification.

• Accessories:
• Sensor insertion tool
• Extension to hardware clearance
• Additional sensor cable up to 475’ (500’ max for model 395 and 200’ max for model 394)
• Accuracy:
• AC or DC power:  ±1% of measured value ±0.006 ft/s (± 0.0018 m/s)
• Battery power:  ±1% of measured value ±0.006 ft/s (± 0.0018 m/s)
• Reverse Flow:  ±1% of measured value ±0.006 ft/s (± 0.0018 m/s)
• Body material: Fusion bonded epoxy (NSF 61 approved) coated 316 stainless steel
• Certifications:
• Standard model:
• ISO 9001: 2015 certified quality management system
• NSF/ANSI/CAN 61 & NSF/ANSI 372
• Certified by MET to UL 61010-1
• HL model:
• ISO 9001: 2015 certified quality management system
• NSF/ANSI/CAN 61 & NSF/ANSI 372
• Certified by MET to UL 61010-1 and MET C22.2 No. 61010-1-04
• Class I, Division 2, Groups A-D, T5
• Class I, Zone 2, IIC T5
• Converter: ProComm GO Transmitter
• Directional Response: Directional / Bidirectional
• Direction Measurement:
• 395 sensor:  Forward flow measurement and reverse flow indication
• 394 sensor:  Bidirectional flow measurement
• Electrical Connections:
• Quick Connect
• Compression gland seals
• Electrode: 316 Stainless Steel
• IP Rating:
• Standard model:  Quick Connect (IP68), Compression gland seals (IP68)
• HL model:  Quick Connect (IP67), Compression gland seals (IP67)
• Linearity: 0.3 % of Range
• Line size: Up to 130”
• Material:
• Stainless steel body
• 316 stainless steel electrodes
• NSF approved fusion bonded epoxy coating
• 2” stainless steel ball valve (minimum of 1-7/8” port I.D.)
• 2” x close stainless steel nipple
• Coating:  Fusion bonded epoxy (NSF 61 approved) coated 316 stainless steel
• Compression Seal:  Silicone Rubber
• Measurement Method: Volumetric flow in filled flow conduits 4” (100 mm) to 138” (3,500 mm) utilizing insertable electromagnetic averaging sensor. Flow indication in English Standard or Metric units.
• Mounting: Converter:  Remote mount
• Operating Conditions:
• Standard model:  10 to 60 °C (14 to 140 °F) up to 250 PSI
• HT (High Temperature) option: 10 to 93°C (14 to 200°F) up to 250 PSI
• Options:
• Hastelloy® electrodes
• Annual verification / calibration
• Stainless steel ID tag
• Power: ProComm Go transmitter can use AC power, DC power, and battery
• Repeatability: 0.2% of reading
• Requirements: Pipe run requirements for the FPI Mag sensor can vary, depending on the disturbances in the pipe run. See FPI Mag 3000 flow meter manual 30126-03, step 3 of the installation procedure for a table of upstream and downstream straight-pipe run recommendations.
• Seal material: 316 Stainless Steel
• Sensor Cable:
• Standard:  25’/7.6 m McCrometer supplied submersible cable with each remote mount unit.
• Optional:  Up to 500’/152.4 m, or 25’/7.6 m max for battery powered.
• Quick connect:  Available in standard cable lengths:
• Feet:  25, 50, 75, 100, 125, 150, 175, 200, 500
• Meters:  7.6, 15.25. 22.5, 30.5, 38.1, 45.75, 53.3, 61, 152.4
• Custom cable lengths at additional cost.
• Sensor Immersion Depth:
• With standard quick connect:  1.8 m (6 ft.)
• With optional strain relief cable:  9 m (30 ft.)
• Storage Conditions:
• -15 to 60°C (5 to 140 °F), 15 to 93°C (5 to 200° F) for High Temperature Option
• Note regarding storage:  During freezing conditions and when meter is not in use, sensor must be removed from pipe and stored in dry conditions.
• Note:  Damage to the sensor caused by allowing the sensor freeze in the pipe is not covered by the warranty.
• Velocity Measurement Range: See FPI Mag Specification Sheet, 30126-15, for flow meter pipe sizes and flow ranges with ProComm GO Transmitter.
• Warranty: 24 months
