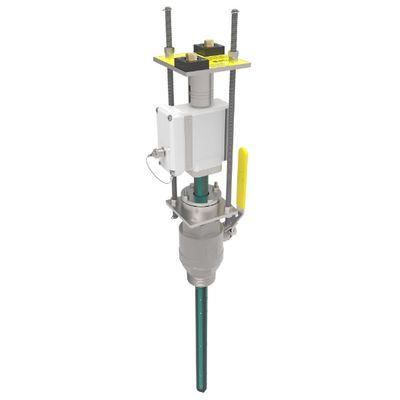

McCrometer FPI Mag Plus - Model 5000 -Electromagnetic Flow Meter

McCrometer’s multi-electrode design and unique operating principle, delivers accuracy unmatched by other insertion meters and rivals the performance of full-bore mag meters.

The true strength of the system lies in pairing it with the ProComm Max signal transmitter. This powerful combination elevates your flow measurement capabilities to new heights, delivering superior performance across various applications.

This next generation of insertion technology makes flow monitoring efforts simple and precise.

The FPI Mag Plus 5000 is designed for the following applications:

• Hot Water up to 200°F
• Chill Water
• Cooling Water
• Chiller Bypass
• Effluent
• Feed water
• And more

Accuracy that Meets or Exceeds Industry Standards

The FPI Mag Plus 5000 meets or exceeds exacting industry standards of ±0.5% accuracy with 3rd party testing verification.

Easily Connects to AMI / AMR Systems

The FPI Mag Plus 5000 is available in forward and bi-directional flow sensors, enabling installation where needed. The Smart Output feature allows the FPI Mag Plus 5000 to connect to AMI / AMR systems through an encoded digital output.

Insertion Design Allows for Simple Installataion

The insertion design allows for easy, hot tap installation, which allows the meter to be installed without interrupting service, de-watering lines, cutting pipe, welding flanges, or inconveniencing customers.

No Moving Parts

The FPI Mag Plus 5000 has no moving parts and a single-piece design. The multi-electrode water flow sensor contains nothing to wear or break and is generally immune to clogging by sand, grit or other debris.

Robust Constructions

The sensor body is made from heavy-duty 316 stainless steel for maximum structural integrity and is hermetically sealed and protected by NSF certified 3M fusion-bonded epoxy coating. Electrodes are constructed from stainless steel as a standard and Hastelloy as a custom option.

• Accessories:
• Sensor insertion tool
• Extension to hardware clearance
• Additional sensor cable up to 475’ (500’ max for model 395 and 200’ max for model 394)
• Accuracy:
• Calibrated accuracy for forward and bidirectional sensors
• ProComm Max Electronics: ±0.5% of measured value ±0.006 ft/s (±0.0018 m/s)
• Reverse Flow: ±1% of measured value ±0.006 ft/s (±0.0018 m/s)
• Body material: Fusion bonded epoxy (NSF 61 approved) coated 316 stainless steel
• Certifications:
• Standard model:
• ISO 9001:2015 certified quality management system
• NSF/ANSI/CAN 61 & NSF/ANSI 372
• Certified by MET to UL 61010-1
• HL model:
• ISO 9001:2015 certified quality management system
• Certified to NSF / ANSI Standards*
• *Certified by IAPMO R&T to NSF/ANSI 61 for material safety and NSF/ANSI 372 for low lead content.
• Converter: ProComm Max Transmitter
• Directional Response: Directional / Bidirectional
• Direction Measurement:
• 395 sensor: Forward flow measurement and reverse flow indication
• 394 sensor: Bidirectional flow measurement
• Electrical Connections:
• Quick Connect
• Compression gland seals
• Electrode: 316 Stainless Steel
• IP Rating:
• Standard model: Quick Connect (IP68), Compression gland seals (IP68)
• HL model: Quick Connect (IP67), Compression gland seals (IP67)
• Linearity: 0.3 % of Range
• Line size: Up to 138”
• Material:
• Stainless steel body
• 316 stainless steel electrodes
• NSF approved fusion bonded epoxy coating
• 2” stainless steel ball valve (minimum of 1-7/8” port I.D.)
• 2” x close stainless steel nipple
• Coating: Fusion bonded epoxy (NSF 61 approved) coated 316 stainless steel
• Compression Seal: Silicone Rubber
• Measurement Method: Volumetric flow in filled flow conduits 4” (100 mm) to 138” (3,500 mm) utilizing insertable electromagnetic averaging sensor. Flow indication in English Standard or Metric units.
• Mounting: Converter: Remote mount
• Operating Conditions: 10 to 60 °C (14 to 140 °F) up to 250 PSI
• Options:
• Hastelloy® electrodes
• Annual verification / calibration
• Stainless steel ID tag
• Power: ProComm Max Transmitter can use AC power or DC power
• Repeatability: 0.2% of reading
• Requirements: Pipe run requirements for the FPI Mag sensor can vary, depending on the disturbances in the pipe run. See FPI Mag flow meter manual 30126-03, step 3 of the installation procedure for a table of upstream and downstream straight-pipe run recommendations.
• Seal material: 316 Stainless Steel
• Sensor Cable:
• Standard: 25’/7.6 m McCrometer supplied submersible cable with each remote mount unit.
• Optional: Up to 500’/152.4 m, or 25’/7.6 m max for battery powered.
• Quick connect: Available in standard cable lengths:
• Feet: 25, 50, 75, 100, 125, 150, 175, 200, 500
• Meters: 7.6, 15.25. 22.5, 30.5, 38.1, 45.75, 53.3, 61, 152.4
• Custom cable lengths at additional cost.
• Sensor Immersion Depth:
• With standard quick connect: 1.8 m (6 ft.)
• With optional strain relief cable: 9 m (30 ft.)
• Storage Conditions:
• -15 to 60°C (5 to 140 °F)
• Note regarding storage: During freezing conditions and when meter is not in use, sensor must be removed from pipe and stored in dry conditions.
• Note: Damage to the sensor caused by allowing the sensor freeze in the pipe is not covered by the warranty.
• Velocity Measurement Range: See FPI Plus Series Specification Sheet, 30126-01, for flow meter pipe sizes and flow ranges with ProComm Max Transmitter.
• Warranty: 24 months
