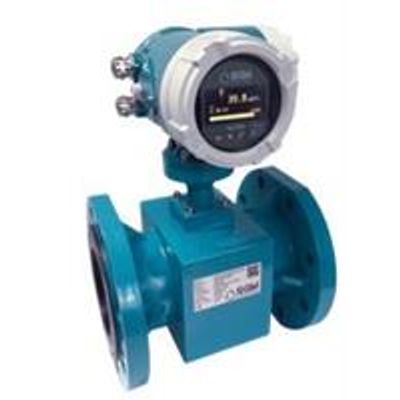

SGM - Model RKMAG -Electromagnetic Flowmeter

FromSGM-Lektra S.r.l.

SHARE

SGM LEKTRA presents a new type of electromagnetic flowmeter with plastic sensors: RKmag. Because of its particular inner shape the mounting of the unit requires no straight pipe lengths before and after the meter. The converter is equipped with a large, bright, removable O-LED display and can mount a pen-drive USB data logger. The configurable outputs can be analogic, pulse and MODBUS RTU and alarm messages are managed by 2 configurable relays.RKmag is suitable for the use with a wide range of conductive liquids, even chemically aggressive: the electrodes material can be selected according to the chemical properties of the fluid.

Most popular related searches

flow monitoring

current transmitter

electromagnetic flow monitoring

Specific for installations with “0 diameters” near curves, fittings etc …
Dn 50 ÷ 150 mm.
Acuracy: ± 0.5%.
ABS sensor and lining.
Power supply 85 ÷ 265 Vac o 12; 24 Vac/Vdc.
Remote control via Smartphone.

Flowrate RPmag is able to process signals from fluids with flow rates of up to 10m / s in both directions (bidirectional meter).
Dimensions/Lining material ABS DN50 ÷ DN150
Sensore material ABS
Housing materials aluminium epoxy varnished
Electrodes material AISI316L, Hastelloy C, Platinum, Tantalum, Titanium
Measure range min. 0,1 m3/h ÷ magg. 110000 m3/h
Accuracy ± 0,2% optional, ± 0,5% standard
Repeatability ± 0,1%
Fluid conductivity >5μS/cm
Power supply 85 ÷ 265 Vac, 24 Vac/dc, 12 Vdc
Consumption typical 6W, max 8W
Process temperature compact version: ABS -20°C ÷ +75°C, remote version: ABS -20°C ÷ +120°C
Storage temperature -40°C ÷ 85°C
Digital communication Bluetooth with app (optional), MODBUS RTU
Data Logger Internal data logger to USB pen drive for flow measurements and analog inputs storing; the measurement storage interval can be set from 15 to 3600 seconds
Output signals 24Vdc galvanically isolated or open collector galvanically isolated 24V 20mA (opt), 4÷20mA: 0÷500Ω / frequency: 0.1÷10000Hz
Input signals 2 ingressi analogici attivi a 24Vdc per la connessione a trasmettitori a 2 fili
Reverse Flow allow measure reverse flow.
Ouput signals test Current Source: Transmitter can be commanded to supply a specified test current between 4.0 and 20.0 mA.,
Frequency Source: Transmitter can be commanded to supply a specified test frequency between 1 and 10000 Hz., Relays output: Transmitter can switch relays at testing value.
Low Flow Cutoff Adjustable. Below selected value, instantaneous flow and outputs are driven to the zero flow rate signal level.
Relative humidity 0÷100% RH at 65 °C, not condensing
Damping Adjustable between 1 and 99 secondi
IP rating compact version IP67, Convertitore IP67, remote sensor version IP67 / IP68 (on request)
Anticondensation filter Anti-condensation filter installed on converter.
