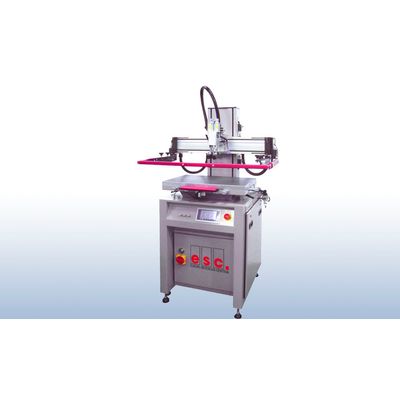

ESC - Model AT PA -Electromechanic High-Precision Screen Printing Machine
Versatile screen printing machine with high ease of use, which is available in two different versions – the PA version designed for flat printing and the PB version for round an oval printing.Although a lot of products to be printed have quite unusal shapes, printing results have to be perfect. For us it is a challenge to find solutions to meet these particular requirements. ESC-AT-PAB machines are laid out for the printing on flat, round and oval items. They are standing out for fast set-up, easy handling and speedy change-over and can easily be integrated into existing production lines.
Most popular related searches
Flat print:
- AT-PA 45
Cylindrical print:
- AT 25 PB
- AT 45 PB
Combined print:
- AT-PAB 25
- AT-PAB 45
- solid machine with fast and silent machine motions
- innovative electromechanic screen lift
- reliable and precise printing results owing to stable machine construction with top-class transmission and guidance systems
- fast set-up and handy adjustment mechanisms

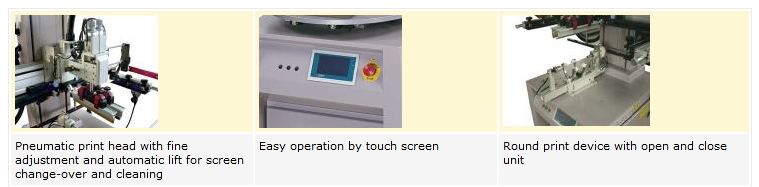

- easy operation by digital touch screen control featuring various functions and numerical controls
- compliance with current CE directives
- custom-made substrate tooling and slot table
- automatic material take-off
- pneumatic squeegee pressure equalisation (PR)
- pneumatic frame locking (PS)
- opto-electronic register device
Technical data:: AT-PAB 45
- max. printing size - flat prints: 300 x 450 mm
- max. screen frame size: 500 x 750 mm
- table height: 945 + 30 mm
- screen lift height: 300 mm
- max. printing speed: 100 - 500 mm/sec.
- max. cycling speed : 800 p/h
- mains supply: 220, 50/60 V /cps
- power: 0,83 kW
- working pressure: 5 - 7 kg/cm²
- air consumption: 0,45 l/stroke
- dimensions (l x w x h) : 920 x 750 x 1710 mm
- weight: ca. 245 kg
