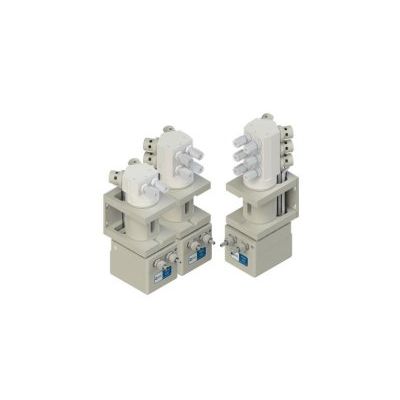

Model PEM050 -Electronic Metering Pumps
PEM050 metering pumps accurately dispense 1-50 ml pf ultra-pure chemicals. They feature a fully supported rolling diaphragm to maximize discharge pressure capabilities. Positive control valves eliminate variability typical of check valves to ensure accuracy.
Most popular related searches
metering pump
cleanroom engineering
electronic metering pump
leak detection
cleanroom testing
cleanroom
check valve
control valve
pressure control valve
leak detection monitoring
- Electronically-controlled adjustable stroke dispense volume up to 50ml
- Fully adjustable stroke speed
- Highly accurate; ±0.01% repeatable
- No exposed metalics prevents corrosion and contamination
- Ultra-pure 100% PTFE wetted surfaces with fully-swept flow path
- PTFE rolling diaphragm for linear dispense
- Visual position reference for easy setup and monitoring
- Leak detection available
- 2 to 6 port configurable
- Programmable system logic
- Programmable suckback
- Quick-change mount for easy install and service
- Install in any orientation
- Self-priming
- Compact footprint
- Minimal hold-up volume
- 80 PSI discharge capable
- Positive inlet/outlet valving prevents flow through
- Clean room assembly, testing and packaging
Dispense Range 1-50 ml per stroke
Dispense Repeatability ± 0.01% (Full Scale)
Cycles Per Minute ≤6 CPM
Air Consumption SCF per Cycle 1-3 SCFM
Fluid Path Materials PTFE
Valve Actuation Air Pressure 4.14 - 5.86 Bar (60 - 85 PSI)
Max Discharge Pressure 5.51 Bar (80 PSI)
Temperature Capability ≤6 100°C (212°F)
Weight 1.6 kg (3.5 lb.)
Suction Lift* 4.6 m (15 ft)
Leak Detection Options Valve Position Sensing
Communication Serial, Ethernet, or Digital (0-5 V, 0-10 V, 4-20 mA)
