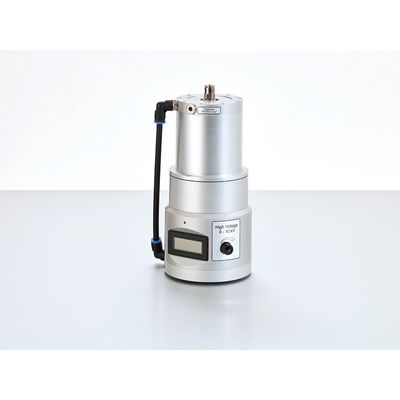

GRIMM - Model 5561 -Electrostatic Precipitator
The GRIMM 5561 electrostatic precipitator is a sampler for aerosols over a wide size range from 0.8 – 1100 nm. The particles can be collected for off-line analysis on different substrates that are suitable for a variety of common analytical tools like transmission electron microscopes (TEM), scanning electron microscopes (SEM) or atomic force microscopes (AFM). For sampling well defined size fractions, all GRIMM DMAs are designed to be combined with the precipitator.
Most popular related searches
atomic force microscopy
electrostatic precipitator
electrostatic precipitation
transmission electron microscopy
scanning electron microscope
aerosol sampling
electron microscopy
bulk sampling
microscopy SEM
nanoparticle monitoring
- particle collection on different substrates
- collection of size-selected particles
- compatible with all GRIMM DMAs
- user-selectable voltage and electrode diameters
- investigation of particle morphology by TEM, SEM or AFM
- composition of single particles or of bulk samples
- size range : 0.8 – 1100 nm (compliant with GRIMM DMAs)
- sample flow : 0.3 – 5.0 L/min (pump not included)
- voltage : 0 – 10 000V, positive polarity, free selectable negative available on request
- sampling substrates : conducting or non-conducting
- sampling electrodes : 10 or 20 mm in diameter; magnetic
- status indication : voltage display and LED
- power supply : 100 – 240 VDC, 50-60 Hz or 12-18 VDC,
- power consumption : 18 W
- ambient temperature : 10 – 40°C (50 – 104°F)
- ambient humidity : 0 – 95% RH, non-condensing
- absolute pressure range : 600 – 1100 mbar
- dimensions (h x w x d) : 25 x 11.5 x 11.5 cm (9.8 x 4.5 x 4.5 in)
- weight : 2.2 kg (4.9 lbs)
