FLSmidth Compactclean™ - Electrostatic Precipitator (ESP)
Large ESP projects aren’t necessary for all applications. Where effective dust emissions control is needed on a smaller scale, our CompactClean™ ESP solution deliver the highest standards of dust collection efficiency with the lowest total cost of ownership (TCO). Flexible layout. Fast installation. Strict emissions limits. Compact design.
The modular ESP: Low-TCO air pollution control
Production industry is under pressure to improve environmental performance. Air pollution control measures such as electrostatic precipitators are an essential means of reducing dust emissions, but can be challenging to implement.
The cost and installation time for a regular ESP can be prohibitive for smaller applications such as those in district heating, biomass or power boilers, lime kilns, brick ovens and special metallurgical processes. But these applications still require the highest standards of emissions control. Our modular ESP solutions offers the lowest total cost of ownership and are engineered to deliver industry-leading efficiency and performance. They match fabric filters in efficiency, delivering reliable dust emission control down to 5 mg/Nm3 .
The flexible modular concept utilises a high degree of standardisation, bringing the cost right down. With maximum preassembly in the workshop, the installation period is simplified. It is now a matter of weeks rather than the usual months for a conventional ESP.
The modular concept is based on our experience of more than 4000 conventional ESPs installed. We have used our approved high quality main components in order to offer well proven technology. The majority of spare parts are exactly the same as in our conventional ESPs to the benefit of your inventory.
IDEAL FOR BIOMASS APPLICATIONS
The CompactClean ESP is the ideal solution for small and medium-sized biomass boilers (1 – 50 MW), whatever the fuel type. Whether you are upgrading an existing biomass plant or installing a new one, you can be confident of complying with emissions limits with this ESP, which meets the MCPD (Medium Combustion Plant Directive) European regulations as standard and can achieve even more strict emissions limits on request.
Preassembled, pre-erected
ESP modules are assembled at our workshop, including pre-erection of all the internal systems and finished hopper and casing wall ready for insulation at site.

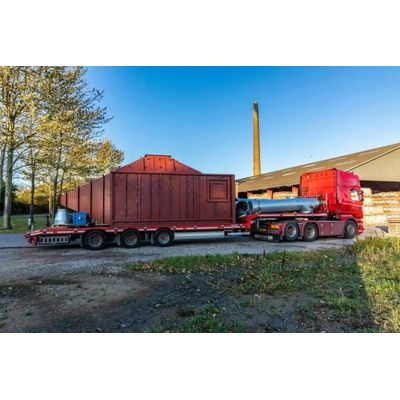

Easy container transport
Internal systems are locked temporarily and the modules are placed inside standard containers for shipping by land and sea.
Standard modules
Modules have a fixed footprint and a variable height depending on gas flow size. All sizes utilise the same key-parts and same number of key-parts. This brings down the cost of the units.Modules have a fixed footprint and a variable height depending on gas flow size. All sizes utilise the same key-parts and same number of key-parts. This brings down the cost of the units.
Flexible and fast ESP installation according to your specifications: We are offering three module types, enabling a number of flexible combinations. Modules can be combined in series and parallel configurations and the module height is flexible, covering a range from small to medium volume flows. Our expert process team will work with you to define the total number of modules needed to meet your specific dust control requirements.
