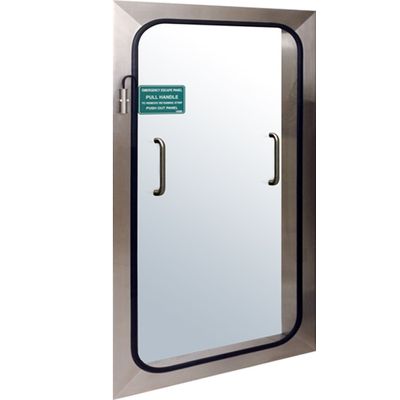

PBSC’s Emergency Escape Panel, also known as a break out panel, service access panel or kick out panel, provides a quick escape from a clean room or containment-controlled environment. Also regularly used as a window that can be easily removed for equipment access routes during planned shut downs.
The breakout panel is available with a PBSC’s flush 1.6mm thick frame in either polished stainless steel or polyester powder coated finish. The frame has a high-quality acrylic sheet fitted with a rubber gasket and engineered bespoke to your specific requirements and specifications.
Quick to remove, it takes around 6 seconds to fully remove the light weight panel providing a fast means of escape when required.
Maximum size of 1.4m Wide x 2.5m High
The unit whilst sealed is not fully air tight. Contact PBSC with any queries on containment requirements.
The Emergency Escape Panel is also known as a Break Out Panel, BOP, Clean Room Door, Service Access Panel, Kick out Panel, Escape Door and Fire Door
- Made to Suit Finished Wall Thickness
- Flush Wrap Around Frame – To Both Sides of the Wall for a Clean room Finish
- Welded and Polished Construction and Finish
- Custom solutions
- Stainless-Steel Assembly and Pull Handles
- Low Leakage Rates
- Structural Opening Min and Max - Dependent on in fill panels
- Clear Opening Minimum 700mm Wide, 900mm High
- Maximum size of 1.4m Wide x 2.5m High
- Please contact PBSC for more details
- 304 or 316L Stainless Steel Construction
- Powder Coated Steel in a Wide Range of RAL/BS Colours
- Pull or Push Types Available
- Clear or Opaque Acrylic Panel
- Escape from Both Sides
