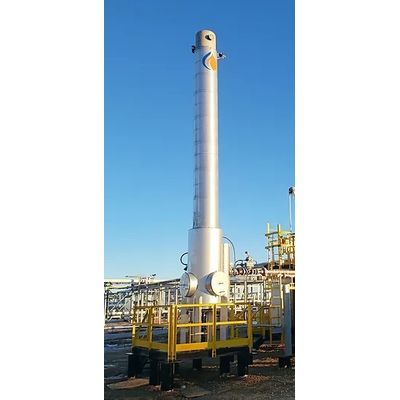

Model C-Series -Emission Mitigation Technology
FromEmission Rx Ltd.
Geared towards processes requiring low skin temperatures as well as processes that require a minimum operating temperature (Sour gas, BTEX Destruction, etc.). The insulated stack design reduces heat loss and minimizes fuel/assist gas requirements. Due to it`s stainless steel construction, these units are well suited to handle acidic or corrosive gas streams as well.
Most popular related searches
liquid level switch
emissions control system
temperature monitoring
level switch
high-temperature monitoring
liquid-level indicator
liquid level monitoring
air intake
digital temperature controller
liquid temperature monitoring
- Heat Inputs from 0.25 MMbtu/hr to 8.5 MMbtu/hr (6 – 200 mscfd [0.17 – 5.6 e3m3/d] methane equivalent flow rate)
- Lightweight easy installation
- Free-standing concrete base
- Insulated stack
- Elevated base section
- low ground-level heat radiation;
- free passage for potentially flammable debris
- Accepts inlet pressures from 0.5 oz/in2 and up
- Integrated ‘slug catcher’ liquid knockout captures free liquids and liquid slugs
- High-level liquid indication
- Temperature monitoring and shutdown
- Low cost
- Close Spacing Eligible
- Arrested air intakes
- Fuel gas-assist package with code-compliant fuel train
- Temperature control
- High liquid level switch
- Liquid level sight
General Highlights
All Combuster Models
- Compliant with all local codes and regulations (structural, gas, electrical, equipment specific)
- Exceptional performance (>99.9% destruction efficiency)
- Natural draft – low power, no moving parts
- No visible flame or smoke.
- Eliminates odors
- Economical
- Simple operation and maintenance
- Custom design
- Certified burner management and ignition system
- High-Temperature shutdown
- Temperature Monitoring
- ESD valves on all gas inlets
- Inline flame arrestor on all gas inlets
- Freestanding
- Robust, reliable construction
- Easy installation
Typical Options
All Combuster Models
- Solar power packages
- Metering packages
- Liquids management packages
- Insulated pilot train enclosure
- Modbus Communication
- Remote Start/Stop and ESD
- ON / OFF Pressure Control
- Continuous ignition retries
- Multiple inlet manifolds to accommodate multiple separate gas streams
- Pilot or Direct Spark Ignition
- Operator training
- Emission sampling port
