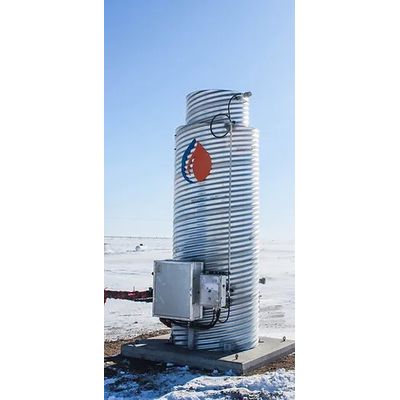

Model E-Series -Emission Mitigation Technology
FromEmission Rx Ltd.
Our most economical option, these robust units get the job done at a low capital cost. Cost reductions have been considered in every avenue from material and build efficiency, to shipping and installation efficiency. Typical applications include casing gas, tank vapors, instrument vents, landfill gas, and bio-digester gas. These units employ a unique air intake design that actively cools the stack shell and preheats combustion air for smokeless, trouble-free operation.
Most popular related searches
emissions control system
air intake
combustion air
combustive air
temperature monitoring
biodigester
smoke elimination
emissions control
emissions sampling
low level radiation
- Heat inputs from 0.25 MMbtu/hr to 30 MMbtu/hr (6 – 700 mscfd [0.17 – 20 e3m3/d] methane equivalent flow rate)
- Extremely Economical
- Completely enclosed process at ground level (no breaches) ensures a high degree of safety
- Extremely easy and quick installation
- Free-standing concrete base
- Cool-To-Touch outer shell
- Preheated combustion air prevents freezing, and cold shocking the burner eliminating liquid drop out and smoke
- Easy internal access
- Internal air intake arresting device
- Accepts pressure from 0.5 oz/in2 and up
- Close Spacing Eligible
- Temperature Monitoring and Shutdown
- Low ground-level heat radiation
- Small shipping footprint
- Corrosion-resistant, high temp coated stack
- Painted external shell
- Smooth rolled steel outer shell
General Highlights
All Combuster Models
- Compliant with all local codes and regulations (structural, gas, electrical, equipment specific)
- Exceptional performance (>99.9% destruction efficiency)
- Natural draft – low power, no moving parts
- No visible flame or smoke.
- Eliminates odors
- Economical
- Simple operation and maintenance
- Custom design
- Certified burner management and ignition system
- High-Temperature shutdown
- Temperature Monitoring
- ESD valves on all gas inlets
- Inline flame arrestor on all gas inlets
- Freestanding
- Robust, reliable construction
- Easy installation
Typical Options
All Combuster Models
- Solar power packages
- Metering packages
- Liquids management packages
- Insulated pilot train enclosure
- Modbus Communication
- Remote Start/Stop and ESD
- ON / OFF Pressure Control
- Continuous ignition retries
- Multiple inlet manifolds to accommodate multiple separate gas streams
- Pilot or Direct Spark Ignition
- Operator training
- Emission sampling port
