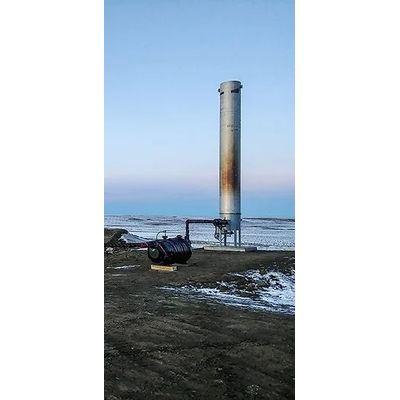

Model EF-Series -Emission Mitigation Technology
FromEmission Rx Ltd.
Designed for high-temperature operation (800°C [1475F]) and maximum flow in an economical package, these units enclose the burner flame and reject large amounts of heat to ensure maximum flow throughput at the lowest possible exhaust temperature. These units are best suited to applications including casing gas, tank vapors, landfill gas, biodigester gas, and other problematic, stranded waste gas. Due to their stainless steel construction, these units are well suited to handle acidic or corrosive gas streams as well.
Most popular related searches
emissions control system
temperature monitoring
high-temperature monitoring
corrosive gas
smoke elimination
emissions sampling
liquid temperature monitoring
emissions control
low level radiation
liquid-level indicator
- Heat Inputs from 2 MMbtu/hr to 15 MMbtu/hr (48 – 355 mscfd [1.35 – 10 e3m3/d] methane equivalent flow rate)
- Lightweight easy installation
- Free-sanding concrete base
- Elevated base section
- Low ground-level heat radiation;
- Free passage for potentially flammable debris
- Accepts inlet pressures from 0.5 oz/in2 and up
- Integrated ‘slug catcher’ liquid knockout captures free liquids and liquid slugs
- Temperature Monitoring and Shutdown
- Low Cost
- High-level liquid indication
- Painted external shell
- Smooth rolled steel outer shell
General Highlights
All Combuster Models
- Compliant with all local codes and regulations (structural, gas, electrical, equipment specific)
- Exceptional performance (>99.9% destruction efficiency)
- Natural draft – low power, no moving parts
- No visible flame or smoke.
- Eliminates odors
- Economical
- Simple operation and maintenance
- Custom design
- Certified burner management and ignition system
- High-Temperature shutdown
- Temperature Monitoring
- ESD valves on all gas inlets
- Inline flame arrestor on all gas inlets
- Freestanding
- Robust, reliable construction
- Easy installation
Typical Options
All Combuster Models
- Solar power packages
- Metering packages
- Liquids management packages
- Insulated pilot train enclosure
- Modbus Communication
- Remote Start/Stop and ESD
- ON / OFF Pressure Control
- Continuous ignition retries
- Multiple inlet manifolds to accommodate multiple separate gas streams
- Pilot or Direct Spark Ignition
- Operator training
- Emission sampling port
