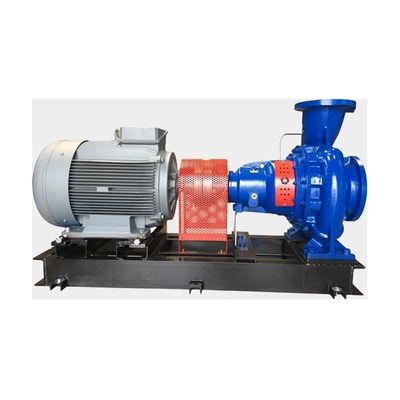

Türbosan - Model NORM Series -End Suction Pumps
NORM series pumps are used for pumping non abrasive, clean and low viscosity liquids which do not content solid particles.
Most popular related searches
urban water supply
water treatment plant
end suction pump
water cooling
suction pump
pump component
urban water
urban water system
industrial water
fire fighting
- Fire fighting sets,
- House, building, city water supply systems,
- Agricultural irrigation and sprinkler systems,
- Heavy industry plants like Iron and Steel plants which required 24 hours continious operation,
- Water treatment plants,
- Paper and pulp industry,
- Water cooling circuits and power plants,
- Textile dyeing machines,
- Chemical and petrochemical industry.
STANDARD MATERIAL SPECIFICATION
- Volute, impeller: Cast iron
- Shaft: C-1040 Carbon steel
- Shaft sleeve: Stainless steel
- Wear rings: Cast iron
- Shaft sealing: Gland packing or mechanical seal
- Bearings: FAG/SKF Grease lubricated
- Operating temperature: -10 °C ÷ +120 °C
* All pump components can be manufactured in variety of materials according to properties of pumped medium.
PERFORMANCE DATA
- Capacity (l/s) 4 – 900
- Discharge head (m) 5 – 90 (150m 3000 rpm)
- Pump discharge size (mm) Ø32 – Ø400
