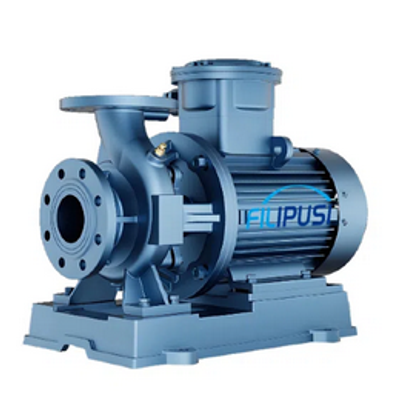

Filipusi - Model SW80-35-34-2 -End Suction Pumps for Efficient
Durable end suction pump suitable for long-term industrial use, public infrastructure projects, and harsh environments—10+ year service life with minimal part replacements and strong warranty coverage.
Most popular related searches
end suction pump
suction pump
fluid cooler
evaporative condenser
refrigerant air conditioning
water pump
air conditioning
water circulator
electrophoresis
impeller pump
- Evaporative condensers
- Industrial fluid coolers
- Refrigeration and air conditioning systems
- Water circulation
- Liquid transfer
- Irrigation
- Flux: 35m3/h
- Pressure: 34m
- Efficiency: 71%
- NPSHr: 3m
- Pump speed: 2960
- Version of the water pump: SW
- Shaft power: 4.6KW
- Pump cover: Cast iron(Electrophoresis)
- Flange: Cast iron(Electrophoresis)
- Actual diameter of the impeller: 166mm
- Pump casing: Cast iron(Electrophoresis)
- Impeller: Cast iron(Electrophoresis)
- Rubber Code: P
- Material Code: S
- Maximum working pressure: 16bar
- Interface model: DIN
- Connection size: DN80
- Highest altitude: 1000meters
- The conveyed liquid: Water
- Maximum: 40?
- Liquid temperature range: -25?~+120?
- Number of motor phases: three-phase
- Number of motor poles: 2
- Protection class: IP55
- Flange pressure rating: PN16
- Motor power (KW): 5.5KW
- Power supply frequency (Hz): 50HZ
- Rated voltage (V): 380V
- Mechanical seal: SW1/25
- Volume: 670×300×461
- weight(KG): 95kg
