CECO ProBalance - Model Plus -Engine Balancing System
The ProBalance Plus system, developed by Compressor Engineering (CECO) in collaboration with Machinery Monitoring Systems (MMS), is an advanced solution designed to maintain balance in slow-speed, natural gas-fueled engines. This system continually monitors peak firing pressures across up to 20 cylinders, automatically adjusting the electronic Fuel Gas Modulators (eFGMs) to ensure consistent engine performance. Key features include automatic engine balancing, pressure deviation alarms, MODBUS communication, and a 7-inch touchscreen display. Engine Cylinder Modules (ECM) are installed at each cylinder, providing local parameter displays and pressure curve insights. The system simplifies the upgrade process for those with manual CECO FGMs by integrating eFGM actuators. Additionally, Snapshot Engine Balancer provides a portable, two-channel analysis tool for verifying ignition and balancing adjustments. With wireless communication, reports can be generated in PDF format for improved asset management.

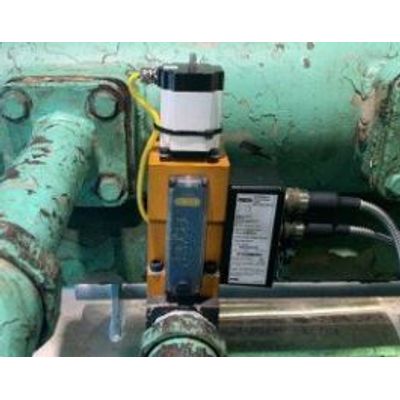

Compressor Engineering (CECO) and MMS have collaborated to enhance the ProBalance system. The ProBalance Plus system makes keeping your slow-speed, natural gas-fueled engines in balance a snap! ProBalance Plus continuously monitors the peak firing pressures in up to 20 cylinders and automatically adjusts the electronic Fuel Gas Modulators (eFGMs) to maintain PFPs across the engine to a user-definable tolerance. The ProBalance Plus system generates an alarm if the engine is unbalanced or if any cylinder exceeds the user-definable PFP or standard deviation. The ProBalance Plus uses CECO-designed and manufactured eFGMs, which are based on their standard FGMs that have been in use for years. The eFGMs are available in several sizes from 1.5” to 2.5” NPT. If you have manual CECO FGMs installed, they can be upgraded by simply adding the eFGM actuator.
- Automatic, continuous engine balancing
- Alarms on balance, over-pressure, standard deviation
- MODBUS communication to Unit PLC
- 7” local touchscreen display
- Balance reports
- Fast, easy installation
- Class I, Division 2 rating pending
The Machinery Monitoring Systems ProBalance system offers an effective solution to keep your slow-speed, natural gas-fueled engines in balance. This state-of-the-art system continuously monitors the peak firing pressures in up to 20 cylinders and generates an alarm if the engine is unbalanced or any cylinder exceeds user-definable PFP or standard deviation.
The ProBalance system provides a streamlined balancing process, allowing for quick adjustments to balance valves while continuously monitoring every cylinder's PFP. Furthermore, generating a PDF balance report is simple; merely click the "As-left" button on the Snapshot wireless tablet and select print, save, or email.
This innovative solution offers a professional and efficient approach to balancing engines and allows for better asset management and increased productivity.
- Continuous combustion monitoring
- Alarms on balance, over-pressure, standard deviation
- Live data is wirelessly transmitted to Snapshot tablet
- As-found, As-left & Balance reports
- Fast, easy installation
- Class I, Division 2 rating pending
- 12” x 10” x 6” NEMA 4X enclosure
- Magnetic mounts
- 7” touchscreen, local display of all parameters
- Pressure curves display
- 24 VDC power
- MODBUS communication to UCP
- 5” x 3” x 2.25 NEMA 4X package
- Magnetic mounting
- Each ECM “daisy-chained with single, armoured cable
- Each ECM includes a valve connector for optional expansion to Automatic Balancing
