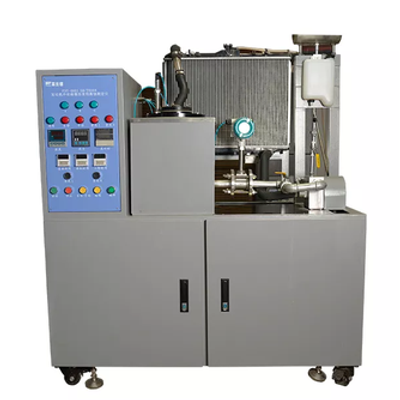

Friend - Model FDY-0801 -Engine Coolant Simulation Corrosion Tester
The method is used: a sample reservoir in the closed system, water pump, radiator and consisting of rubber tube, at a certain temperature and flow conditions of circulation 1064h, typically by the metal corrosion test inside the reservoir by the engine`s cooling system weightlessness and will face in the visual status of each member and determine tablets. Performance by the periodic change of the sample on the sample taken from the system for analysis in the test cycle to determine. The instrument is suitable for engine coolant and engine coolant concentrate.
Most popular related searches
corrosion testing
digital temperature controller
cooling water tank
water pump
turbine flow meter
cooling system
water tank
cooling water
water cooling
water radiation
- It is equipped with explosion-proof motor and over-temperature protection, the reservoir cap fitted with a safety valve, to ensure safe operation of the instrument.
- It uses a piston displacement of 1.6 ~ 5.0L auto water pump and cooling water tank, countertops made of stainless steel fasteners made of stainless steel screws, easy to disassemble never rust.
- It adopts imported digital temperature controller, PID tracking high precision temperature control.
- It adopts turbine flowmeter, accurate and intuitive.
- It adopts intelligent digital timer, timing accuracy, after the half-way down to show the actual running time.
- The liquid flow rate: 1.3 ~ 1.6L / s;
- Control temperature: 88 °C± 3 °C;
- Running time: 1064h;
- Heating power: 2.6kw;
- Motor power: 2.2KW;
- The pressure directions: 80 ~ 103Kpa;
- Total Power: 4.8kw;
- The work of the power supply: AC380V ± 10% 50HZ;
- Weight: 180Kg.
