Equilibrium Ball Float Valve

Equilibrium Ball Float Valve

FromT-T Pumps Ltd.

SHARE

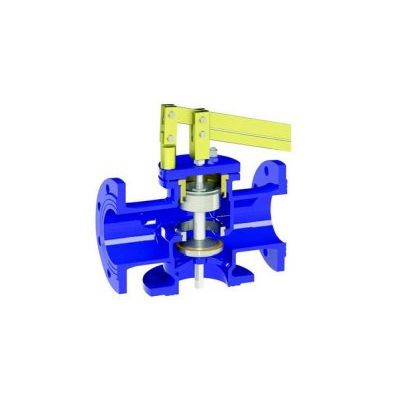

Float valve featuring multiple discharge parts, used to automatically manage the filling of the tanks and reservoirs to the desired level. Equilibrium ball float valve with multiple discharge ports used to automatically regulate and control the filling of tanks and reservoirs to a predetermined level. Suitable for clean and potable water duties.

Most popular related searches

fusion bonded epoxy coating

hydrostatic pressure testing

floating ball valve

float control valve

hydrostatic test

Technical Specification

Range: DN50 - DN300
Flanges and drillings: BS EN 1092-2:1987 Table 9 (PN16)
Maximum working pressure: 16 Bar
Hydrostatic pressure tests: Seat: 1.1 x PN (17.6 Bar) Body: 1.5 x PN (24.0 Bar)
Temperature range: -10°C to 70°C, insulated at 0°C and below
Coating: blue fusion bonded Epoxy (>300µ and WRAS listed)

Features

Unique lightweight ductile iron design
Balanced seat for optimal efficiency
Versatile T-ported flanged body
Stainless steel internals and float for corrosion resistance
Long float arm for accurate and reliable operation
Float arm can be off-set by 45° so not to obstruct horizontal installation
Durable fusion bonded epoxy coating

Options

Alternative internal materials
Alternative flange drillings
Anti-freeze device
