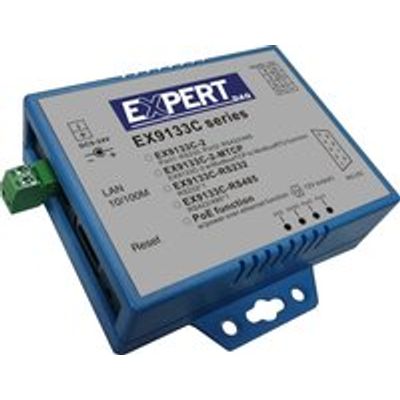

ExpertdAQ - Model EX9133C-2-PoE -Ethernet Converter
The EX9133C-2-PoE converter allows your serial devices to be integrated easily to your network. It features 1 x RS232 und 1 x RS485 / 422 interfaces with PoE. It is designed for industrial use, is especially robust, can work in a wide temperature range and stands out through a very long durability.
- one RS232 output and one RS422 / RS485 output
- PoE
- easy configuration via web-interface
- extended temperature range
- Din Rail Mounting Kit (2 Euro, just give me a hint on your order)
- Power cable (2 Euro, just give me a hint on your order)
- 12V power adapter (9 Euro, just give me a hint on your order)
Interface 1
Port: 1 · Ethernet
Speed: 10/100 mbit
Connector: RJ45 Ethernet
Interface 2
Port: 1 · RS232 + 1 · RS422 / RS485
Speed: 300 - 115200 bps
Connector: RS232: DB9 female, RS422 / RS485: Terminal block
Features
Supported Protocols: ASCII / Modbus RTU
Isolation voltage: 1500 V
Extras: Web Interface
Power over Ethernet: Yes
System
Power max.: 3.5 W
Power input: 9~24V DC
Enclosure
Mounting: Din Rail Mounting
Dimension: 90 x 60 x 20mm
Weight: 100g
Environment
Operating temperature: 0~70°C
Storage temperature: -10~85°C
Certification: CE / FCC / WEEE / RoHS
