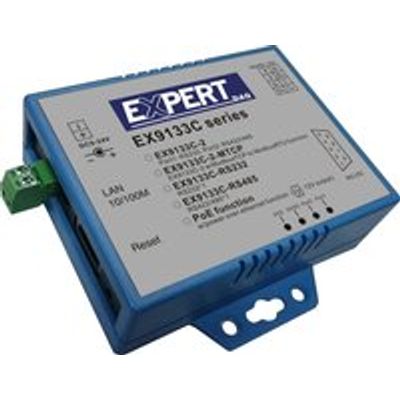

ExpertdAQ - Model EX9133C-RS485-PoE -Ethernet Converter
With the help of EX9133C-RS485-PoE Converter you can easily integrate serial devices in a LAN-network. The EX9133C-RS485 has one RS485 / RS422 port and features PoE. The Ethernet Converter can be operated in a wide temperature range. Set up is easy because the transmission parameters can be adjusted via a web interface. Included Virtual Com Software for: Windows can be downloaded for free (see at bottom)
- output RS485 / RS422
- PoE
- easy configuration via web-interface
- extended temperature range
Interface 1
Port: 1 · Ethernet
Speed: 10/100 mbit
Connector: RJ45 Ethernet
Interface 2
Port: 1 · RS422 / RS485
Speed: 300 - 115200 bps
Connector: Terminal block
Features
Supported Protocols: ASCII / Modbus RTU
Isolation voltage: 1500 V
Extras: Web Interface
Power over Ethernet: Yes
System
Power max.: 3.5 W
Power input: 9~24V DC
Enclosure
Mounting: Din Rail Mounting
Dimension: 90 x 60 x 20mm
Weight: 100g
Environment
Operating temperature: 0~70°C
Storage temperature: -10~85°C
Certification: CE / FCC / WEEE / RoHS
