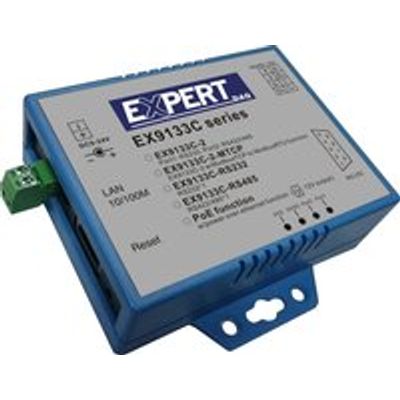

ExpertdAQ - Model EX9133C-2 -Ethernet Converter
With the EX9133C-2 RS232 / RS422 / RS485 to Ethernet Converter you can easily integrate serial devices in a LAN-network. The EX9133C-2 has two connectors, one RS232 and one RS422 / RS485. The Ethernet Converter can be operated in a wide temperature range. Set up is easy because all configuration parameters can be set with a web interface. Virtual Com Software for: Windows can be downloaded for free (see downloads)
- one RS232 output and one RS422 / RS485 output
- easy configuration via web-interface
- extended temperature range
- Din Rail Mounting Kit (2 Euro, just give me a hint on your order)
- Power cable (2 Euro, just give me a hint on your order)
- 12V power adapter (9 Euro, just give me a hint on your order)
Interface 1
Port: 1 · Ethernet
Speed: 10/100 mbit
Connector: RJ45 Ethernet
Interface 2
Port: 1 · RS232 + 1 · RS422 / RS485
Speed: 300 - 115200 bps
Connector: RS232: DB9 female, RS422 / RS485: Terminal block
Features
Supported Protocols: ASCII / Modbus RTU
Isolation voltage: 1500 V
Extras: Web Interface
System
Power max.: 3.5 W
Power input: 9~24V DC
Enclosure
Mounting: Din Rail Mounting
Dimension: 90 x 60 x 20mm
Weight: 100g
Environment
Operating temperature: 0~70°C
Storage temperature: -10~85°C
Certification: CE / FCC / WEEE / RoHS
