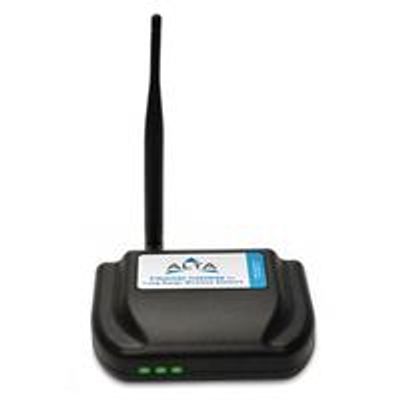

Alta - Ethernet Gateway
The ALTA Ethernet gateway allows your ALTA Wireless Sensors to communicate with the iMonnit™ Online Wireless Sensor Monitoring and Notification System without the need for a PC. Simply plug this device into any open network port with internet connection and it will automatically connect with our online servers. The device will buffer up to 16,000 sensor data messages in on-board memory in the event of an internet connection interruption. When internet communication is re-established the sensor data will download to the iMonnit online system. The Power-Over-Ethernet option features modified gateway hardware allowing it to be powered through the Ethernet port. Note: This option includes gateway modification only and does not include an Ethernet power injector.
- Ethernet Gateway
- High Gain Antenna
- Power Supply
- Ethernet Cable
- Ethernet Gateway Quick Start Guide
- AC power supply (POE version also available)
- Existing Internet connection required
- No PC required for operation
- Real time TCP interface
- SNMP poll and trap interface
- MODBUS TCP interface
- FCC, IC and CE certified
* Actual range may vary depending on environment.
Ethernet Gateway Specifications
- Dimension 139.85 x 101.75 x 34.95 mm
- Storage Temperature: -20 to +85 °C (-4 to 185 °F)
- Enclosure Material ABS plastic
- LED Lights H/W status, iMonnit connection status, sensor data activity
- Antenna Type SMA: 5.0 dBi Gain
- Operating Temperature -10 to +70 °C (14 to +158 °F)
- Device Memory 16,000 sensor messages (Sensor messages will be stored in the event of Internet outage and transferred when connection is restored)
- Hardware 10/100 Ethernet Controller
- IEEE Standard Compliance 802.3-2002
- Operation Full- and Half-Duplex
- Cross-Over Correction Automatic MDI/MDI-X
- Addressing Pre-programmed MAC Address
- Host Address t1.sensorsgateway.com
- Default Port 3000
- Protocols Supported UDP, DHCP, TCP, SNMP, Modbus
- Cable Connector Cat 5
- Power Supply 5.5 V AC adapter
- Power-Over-Ethernet option requires standard PoE (802.3AF) Class 1 capable power injector (not included)
ALTA 900 MHz Specifications
- Operating Frequency 900 MHz Operating Frequency
- Certifications Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)
- Complies with Industry Canada standards. (IC: 9794A-G2SC1)
- Device Range Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*
- Security Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
Suggested Application Uses for This Sensor
- Transmits sensor data to the iMonnit online sensor monitoring portal
- Commercial monitoring applications
- Facilities monitoring
- Small business monitoring
- Large business monitoring
