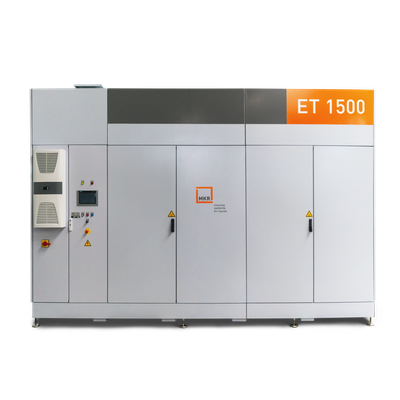

MKR Metzger - Model ET 1500 -Evaporator

• Nominal output: 1500 l/h
• For 300 days: 10800 t/year

Measurements and weight

• Empty weight: 8,000 kg
• Length: 4.5 m
• Width: 2.8 m
• Height: 3.1 m

Power

• Throughput: 1500 l/h
• Suction volume flow: 1500 l/h
• Destillate output: 20 l/kWhth
• Destillate stream max.: 1350 l/h

Connections

• Emptying connection: 40 DN
• Distillate connection: 25 DN
• Concentrate connection: 25 DN
• Fresh water connection (min. 4 bar): 25 DN
• Waste water connection: 40 DN

Electrical

• Electrical connection: 400V / 50Hz | 120kW / 195A | 3P/N/PE
• Operating voltage: 3/400 N PE 50 Hz

Further values

• Parts in contact with media manufactured in stainless steel: Yes
• Noise level: <76 dB (A)
• TS content of digestate: ca. 1 % TS
• Particle size: < 100 μm
