Model TIS MFTPRO+ EV -Evse Testing Kit with Earth Electrode

The complete EVSE Multifunction test kit with built in EVSE Auto sequence and 3 & 4 Wire Earth Electrode Test.

Most popular related searches

Full Auto Sequence- Continuity, Insulation, Status Checks, Loop Test, Ramp Test (30mA Type A and 6mA Type B).
6mA RDC-DD Test for EVSE Compliant to IEC 62955
Guided Help Screen on each Test.
Tests Mode 2 and 3 Charging Stations.
Fault Simulation (PE and E).
Data Saving of Results.
Data Export of Results.
Phase Presence Indication.
Vehicle Simulation (CP) A,B,C and D.
Cable Coding Simulation (PP) 13A, 20A, 32A and 63A
Venilated or Non-Ventilated Charging Stations.
Single Phase or Three Phase Systems.
Type 2 Connection.

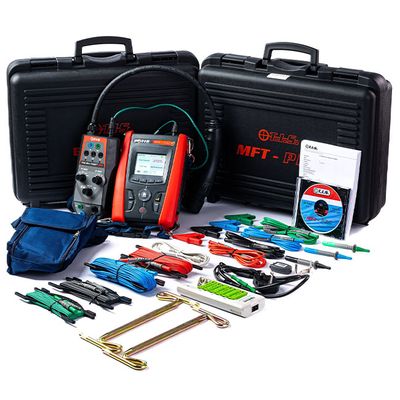

Two Hard Robust Carrying Cases Supplied with Link Cable to Link the Multifunction and EVSE Adapter together.
TIS EV-TEST100 CAT III 300V.
TIS MFTPRO CAT IV 300V.
3 Year Warranty providing the products are serviced by TIS.
6 x 2000mA Rechargable batteries & charger supplied

Specification
