Tiannuo - Excavator Vibratory Compactor
An Excavator Vibratory Compactor is a crucial piece of equipment used in various construction and infrastructure projects to compact soil, gravel, concrete, or asphalt. These compactors are typically attached to the arm of an excavator and utilize high-frequency vibrations to efficiently compress the material, ensuring a solid and stable foundation for roads, buildings, and other structures. By delivering superior compaction results, they help extend the lifespan and durability of the constructed surfaces.
Hammer Mass:
Range: 2000 - 4000 kg
Effect: Greater mass results in more force and better vibration, but excessive weight may cause equipment overload or soil damage.
Construction Speed:
Range: 2 - 4 m/min
Considerations: Must account for soil bearing capacity and project requirements to avoid uneven compaction.
Frequency:
Measurement: Expressed in Hertz (Hz)
Guidelines:
Hard Soil: Higher frequency
Soft Soil: Lower frequency
Power:
Measurement: Expressed in kilowatts (kW)
General Rule: Greater power correlates with higher working efficiency.
Mass of Vibrating Rammer:
Measurement: Expressed in kilograms (kg)
Effect: Greater mass increases pressure applied on the soil.
Base Plate Size:
Measurement: Expressed in millimeters (mm) or inches (inch)
General Rule: Larger base plate size increases construction efficiency.
High Efficiency: Our Excavator Vibratory Compactor deliver powerful vibration forces that ensure effective compaction of various soil types, including clay, sand, and gravel, leading to quicker project completion.
Durable Construction: Built with high-grade steel, these compactors are designed to withstand harsh working environments, reducing the likelihood of wear and tear.
Versatility: Suitable for a wide range of applications such as road construction, trenching, and pipeline backfill, the Tiannuo compactor adapts to different project needs.
Easy Attachment: With options for bolt-on and quick hitch mounting, these compactors can be easily attached and detached from excavators, providing flexibility and ease of use.
Low Maintenance: Engineered for long service intervals, our compactors require minimal maintenance, lowering overall operational costs.
Safety Features: Equipped with a protective cage and vibration damping technology, our compactors ensure operator safety and comfort.

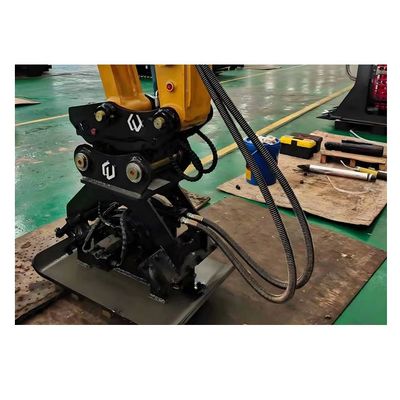

The compactor operates by attaching to the arm of an excavator. When activated, the compactor plate vibrates rapidly, sending vibrations through the soil or other material beneath it. These vibrations reduce the air voids between the soil particles, increasing their density and stability. This process is essential for preparing construction sites and ensuring the longevity of paved surfaces.
Operators can control the vibration frequency and compaction force from the excavator`s cab, allowing for precision compaction tailored to specific project requirements. The compactor`s design enables it to function in both confined spaces and large open areas, making it versatile and efficient for various construction scenarios.
