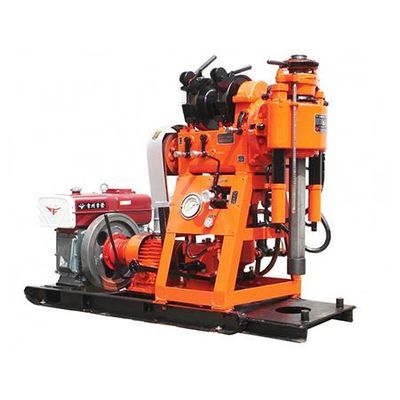

Model HT-150E -Exploration Core Drill Rig
The Exploration Core Drill Rig, Type HT-150E, is an advanced shallow borehole drill rig engineered for versatile applications in geological engineering and core drilling. Ideal for geological surveys in railway, highway, and bridge constructions, as well as power stations and tunnels, this rig demonstrates robust utility in both civil and industrial building projects. With the capability to reach drilling depths of up to 150 meters, it is also suitable for small-scale water well drilling and core sampling operations. The HT-150E stands out in its field, melding state-of-the-art drilling technology with efficient performance, making it an essential tool for geotechnical engineering projects.
Most popular related searches
core drill rig
drilling rig
core drilling
exploration drilling rig
drilling rig core
water well drill
water drilling
exploration drilling
domestic well water
geotechnical engineering project
Exploration core drill rig type HT-150E is a new type of shallow borehole drill which is mainly used for geological engineering and core drilling as auxiliary. It is applicable in geological surveys of the constructions of railways, highways, bridges, power stations, tunnels, civil and industrial buildings, small scale water well drilling as well as core drilling. The drilling depth is 150m.
Drilling depth (Φ 42 drill pipe): 150m
Hexagonal Kelly: 51X46mm
Gyrator speed: 99-1019r/min
Maximum torque output of vertical axis: 750N.M
Maximum lifting force of vertical axis: 30KN
Maximum stress of vertical axis: 23KN
Gyrator angle: 360°
Single rope maximum lifting force: 11KN
Single rope lifting speed: 0.413-4.237m/s
Mass of drill rig: 530Kg
- HT-150G type drilling rig is a vertical drilling rig which adopts mechanical transmission and hydraulic feeding. It is equipped with a ball clamp for easy and safe operation.
- Water pump and drill rig are installed on different bodies and thus can be driven together or separately by single force. It is convenient for dismantling and relocation.
