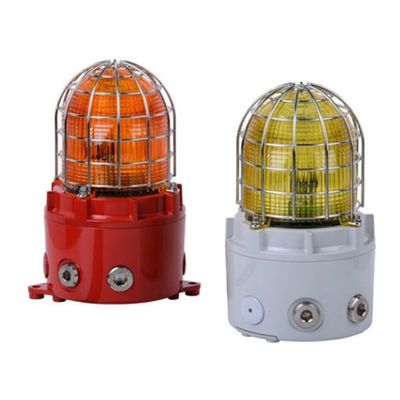

Conspec Controls - Model D1xB2LD2 -Explosion Proof LED Beacon Warning Light

SHARE

The D1xB2LD2 beacons produce a high output LED flash required for effective signaling in environments with elevated levels of ambient light. The field replaceable colour filter enhances the strobe and is constructed from UV stable PC. The robust enclosure features a threaded flame path, four cable entries. Mounting options include surface via integrated lugs, pendant or by addition of optional multi direction stainless steel bracket. SIL1 compliant to IEC61508 (2010) as standard.

Most popular related searches
explosion proof LED light
LED lighting

THE D1XB2LD2 IS A GLOBALLY APPROVED EXPLOSION PROOF MULTI-FUNCTION LED BEACON. THE ROBUST TYPE 4/4X CORROSION PROOF LM6 MARINE GRADE ALUMINUM ALLOY ENCLOSURE ENSURES SUITABILITY FOR ALL CLASS I/II DIV 1, ZONE 1, 2, 21 & 22 APPLICATIONS.

  • Five flash rates: 1Hz, 1.33Hz, 2Hz, double and triple flash.
  • Automatic synchronisation on multi-beacon systems
  • High and low power Steady modes
  • Three remotely selectable stages/channels on DC versions.
  • A4 316 Stainless Steel guard included as standard
  • Field replaceable UV stable lens colour filter
  • 4 x side, 1 x pendant cable/conduit entries – stopping plugs included
  • Corrosion proof marine grade aluminium enclosure
  • Source: Array of 4 x High Power Cree® LED’s
  • Modes: 1Hz flash (60 fpm) 1.33Hz flash (80 fpm) 2Hz flash (120 fpm) Double strike flash Triple strike flash High Power Steady Low Power Steady
  • Eff. Intensity cd: 338 cd – 1Hz flash
  • Eff. Intensity cd: 174 cd – High Power Steady
  • Lens colours: Amber, Blue, Clear, Green, Magenta, Red & Yellow
  • Voltage DC: 24V dc (18-30Vdc)
  • Voltage AC: 115Vac (110-120Vac), 230Vac (220-240Vac)
  • In-rush @ 24Vdc: 1890mA within 0.22ms
  • LED life: 60,000 hours+
  • Ingress protection: IP rating per EN60529:IP66/67 Type rating per UL50E/NEMA250:4/4X/3R/13
  • Lens material: High impact Borosilicate glass
  • Enclosure material: Marine grade LM6 aluminium alloy
  • Enclosure colour: Red or Grey, custom colours available on request
  • Enclosure finish: Chromate & powder coated finish
  • Cable entries: Side: 2 × 3/4″NPT & 2 x M20x1.5mm Pendant: 1 × 3/4″NPT Stopping plugs included
  • Stopping plugs: Brass, Nickel Plated or Stainless Steel
  • Terminals: 0.5 – 2.5mm² (20-14 AWG) Duplicated terminals
  • Ground/Earth stud: M5
  • Line monitoring: Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted
  • Line monitoring: Blocking diode included EOL Min. 500 Ohm 2W, or 3k3 Ohm 0.5W resistor or diode (DC versions) can be fitted
  • Enclosure volume:
  • Installation temp: -55 to +80°C [-67° to +176°F]
  • Storage temp: -55 to +80°C [-67° to +176°F]
  • Relative humidity: 95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
  • Weight: 3.2kg/7.1Ibs
  • *All candela data is representative of performance with clear lens at optimum voltage.
