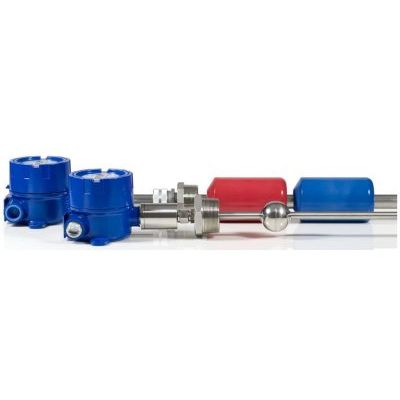

APG - Model Series MPX-E/R -Explosion Proof Magnetostrictive Float Level Transmitter
Series Magnetostrictive Level sensor provides highly accurate and repeatable level readings in a wide variety of liquid level measurement applications. The MPX-R’s large, buoyant, and robust float allows it to be used in harsh applications where fouling or buildup might otherwise be of concern. The MPX-E’s lighter weight design allows it to be used in applications where space is limited. The fiberglass stem of the MPX-G expands the already impressive chemical compatibility of the MPX. And the MPX-F’s flexible stainless steel stem allows for accurate measurements in environments that are not straight-forward.
- Class 1 Division 1 Groups C & D, Class 1 Zone 1, Class 1 Zone 2
- Highly accurate and repeatable readings
- 4-20 mA, RS-485 (Modbus RTU) output
- Rugged and reliable, lengths up to 32 feet (9.75 m)
- Dual level (interface) measurement
- Tank volume/level, strapping table
Modbus Output
The RS-485 Modbus RTU output makes the MPX compatible with any Modbus controller or PLC. It also simplifies wiring dramatically.
Tank Cloud Compatible
The MPX liquid level sensor is a Tank Cloud slave sensor, able to communicate via the Internet with the addition of an LOE Master sensor or an RST-5003 module.
Durable & Compatible
This liquid level sensor is built to take a beating - designed for high turbidity environments in hazardous locations. It also has several materials options for the stem and floats for maximum chemical compatibility.
Performance
- Accuracy
- Greater of ±0.04 in. (±1mm) or 0.05% of full range
- Resolution
- Modbus: ±0.04 in. (±1mm)
- 4-20 mA: 14 bit DAC
Programming
- RS-485
- Optional RST-6001 USB to RS-485 converter
- 4-20 mA
- Factory set or optional RST-4100 programming module
Electrical
- Supply Voltage
- 12-24 VDC
- Maximum Current Draw
- Modbus MPX-E: 25 mA
- Modbus MPX-R: 28 mA
- 4-20 mA Single: 22 mA
- 4-20 mA Dual: 44 mA
Physical
- Housing
- Cast aluminium, epoxy coated
- Stem
- 304 SS or 316L SS
- Stem Length
- MPX-E: 1 - 12.75 ft. (0.3 - 3.9 m)
- MPX-R: 4 - 31.5 ft. (1.22 - 9.60 m)
Approvals
- Certifications
- Class I Division 1 Groups C & D T4 (Ta 85°C)
- Class I Division 2 Groups C & D T4 (Ta 85°C)
- Class I, Zone 1; AEx d IIB T4
- Class I, Zone 2; AEx nA IIB T4
- Ex d IIB T4
- Ex nA IIB T4
Connectivity
- Outputs
- 4-20mA (Loop-Powered 2 wire)
- Dual 4-20mA (Loop-Powered 3 wire)
- Modbus RTU (RS-485) with Temperature output (optional for MPX-E)
- Internet Connectivity
- with Tank Cloud LOE Master or RST-5003
Environmental
- Operating Temperature
- -40° to 185° F (-40° to 85° C)
- Protection Rating
- NEMA 4X
- IP65
Extreme Accuracy For Extreme Environments
The MPX magnetostrictive liquid level probe is very accurate and tough as nails. It`s also an ideal solution for taking two measurements: both the interface level measurement and a total volume.
- Range: Up to 12.75 ft, Up to 31.5 ft.
- Output: Tank Cloud Slave, 4-20 mA, Modbus RTU
- Mount: Flange, No Mount, NPT
- Certification: Class 1, Div 1, Explosion Proof
