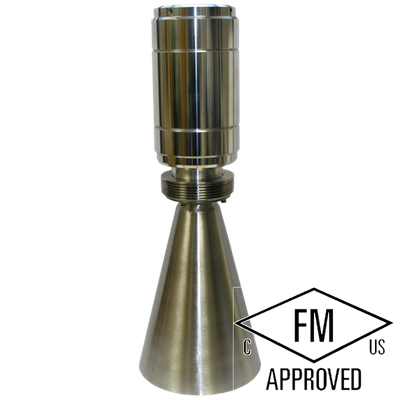

ABM - Model R-EXP -Explosion Proof Radar Level Sensor

• Explosion Proof (Class I, Division 1)
• Measuring range up to 240 ft (73.2 m)
• Non-contact continuous level measurement
• Self-cleaning, maintenance free operation
• Plug-and-play installation with simple calibration
• Optional remote monitoring and support

• Technology: Pulse radar
• Measuring Range: Up to 240 ft (73.2 m)
• Accuracy: +/- 0.10 % of maximum range (in lab using 4-20 mA current output). +/- 0.25 % of maximum range (typical in field)
• Frequency: 6.3 GHz or 5.8 GHz (outside North America)
• Calibration: Push-button or programmable via communications port
• Output: 4-20 mA output 6.1 uA resolution
• Power Options: 16-30 VDC (2-wire loop-powered) or 12-30 VDC (3-wire)
• Communication Options: HART 7, RS232 or RS485
• Ambient Temperature: -40 to 60°C (-40 to 140°F)
• Installation Category: Class II
• Enclosure Material: Aluminum standard. SS316L optional
• Protection Rating: IP68 (NEMA 6)
• Antenna: Teflon rod or SS316L horn
• Process Connection: 1.5″- 3″ NPT
• Process Temperature: -40°C to 80°C (-40°F to 176°F)
• Process Pressure: ≤ 5 Bar (72.5 psi)

High Performance, Low Maintenance Radar Sensor.

• Self-adjusting sensor, automatically eliminates false echoes without user involvement
• High resolution with short transmitted pulses ensures accuracy
• Very narrow radiation beam enables installation close to tank walls
• No influence from mounting, walls or internal obstructions on sensors performance
• No influence from temperature, pressure or humidity on measurement
• Teflon rod antenna resists material and moisture build-up
• Non-contact and self-cleaning nature provides maintenance free operation

Technology Advantage

ABM’s smart, self-adjusting radar sensors continually monitor conditions in the environment and automatically adjust the transmitted energy and sensitivity to match the current tank conditions. This technique allows the receiver to detect only one echo from the measured media while all false echoes are pushed under the noise level and eliminated. The self-adjusting technique also gives the same amplitude of wanted echoes regardless of distance to the target.

With one echo only, signal processing is very simple and the certainty of the measured echo being the target is 100%. This makes the ABM sensors very accurate and reliable. Operation is plug-and-play with ABM sensors. The self-adjusting nature means there is no need for mapping or profiling the environment or downloading several parameters. These signal process operations commonly used by other brands reduce the certainty in the measured materials level. ABM sensors are smart and automatically adapt without user involvement.

Very narrow transmit pulses enable liquid interface detection, such as oil-water interface. The radar sensor has a very fast response, up to 20 updates per second, enabling control for fast moving applications (i.e. vehicles, boats, etc.). Very high dynamics enables detection of very low dielectric constant liquids (>2).

The R-EXP pulse radar sensor from ABM is the ideal solution for liquid, slurry or solid level applications in areas classified as hazardous (Class I Division 1). The sensor is suited for processes with vapours, gases (CO₂, CO, H₂S, H₂), foaming, ice or volatile surfaces. The non-contact radar sensor provides continuous level measurement up to 240 ft (73.2 m) with 4-20 mA output standard and simple push-button calibration. The sensor can be factory configured for a variety of applications with 2-wire loop-powered (HART) or 3-wire (RS232 or RS485) power and communication options, and optional remote monitoring and support capabilities with the Cellular Gateway.

Industries

• Water & Wastewater
• Chemical
• Petrochemical
• Food & Beverage

Applications

• Process tank level and control
• Chemical inventory level in storage tanks
• Wastewater level in settlement tanks
• Influent wastewater monitoring
• Lift station pump control
• Open channel flow measurement
• Manhole sewer level monitoring
