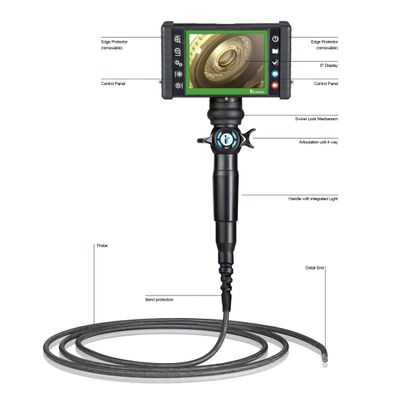

Model Videoscope-Xt -Explosion Proof Videoscope
Inspect areas not previously seen in harsh industrial environments. Inspections are faster and more reliable. Field portable, battery powered VIDEOSCOPE-XT kits provide field inspectors with all the tools to save time and money. Long life battery capability is optimum for meter tube and gas path inspections. Inspect meter tube vanes to insure critical gas flow. Identify blockages and corroded gas measurement components. Accurately record flow and realize proper resulting revenue. The range of diameters available cover all aviation turbines and power plants. 4mm and 6mm diameters for aviation compressors (LPC and HPC). 6mm for LPT and HPT hot sections as well as the combustion chamber. The range of diameters covers all areas identifying dings, torn blades, missing material and burn marks.
The VIDEOSCOPE-XT is easy to set up and use. A push of a button and you ready to go – store all media compatible videos and still images in high resolution. Quick “in and out” of the hazardous locations and inspection areas with small bend radius to access tight areas or corners. 360 degree all way articulation provides complete field coverage of the inspection site with single handed inspection. Precise tip positioning and tactile articulation control allows the inspector to finely position the high-resolution optics for spectacular views inside turbines, compressors, tanks, vessels and operating machinery. Images are presented on a bright, high-resolution 5” display.
- Sun screen option for daylight use
- Long life battery operation
- Field Portable, Robust, Durable VIDEOSCOPE-XT Set is kitted hard plastic Shipping & Carrying Case
- Made locally in the USA
Intrinsically safe borescope camera should limit its produced energy, electrical and thermal, to a level below that required to ignite a specific hazardous atmospheric mixture.
Explosion proof borescope camera should be capable of withstanding and containing any explosion originating within the housing, so preventing sparks and flames within the housing from igniting surrounding specific hazardous atmospheric mixture.
