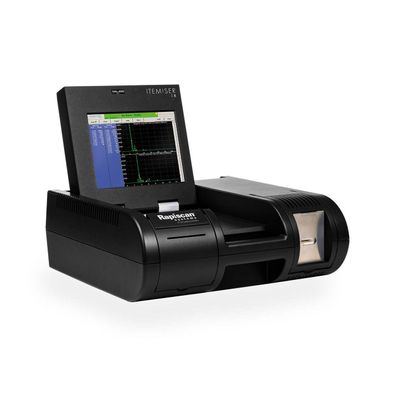

Itemiser - Model 5X -Explosive Trace Detector
The Itemiser 5X uses optimized detection libraries and advanced software algorithms, making it the ideal solution for detecting trace amounts of explosive and narcotic threats. The nonradioactive ionization source eliminates the need for annual wipe tests and licensing, as well as reduces shipping challenges. This portable, ergonomic desktop design features automated internal calibration to help decrease consumables usage, boost availability rates, and increase detection probability.
Most popular related searches
trace explosives detection system
explosive trace detector
trace explosives
explosives detection system
remote monitoring
mobile spectrometer
ion mobility spectrometer
narcotics
trace detection
spectrometer analysis
- New subsystems for greater reliability & advanced software algorithms
- Faster clear downs
- New Desorber design makes for more efficient sample introduction
- New Sample Wand with greater ergonomics and sample introduction
- Remote monitoring via remote connection console
- Results require minimal interpretations, allowing operators to concentrate on sample acquistion
- Patented Regenerative dryer increases uptime and eliminates cost of dryer material replacements
- Advanced diagnostics to ensure increased detection performance
- Non-radioactive ionization source removes shipping restrictions and licensing requirements
- Ability to create substance libraries
DETECTOR TYPE: Ion Trap Mobility Spectrometer (ITMS™)
ANALYSIS TIME: Default 8 seconds
SAMPLE ACQUISITION: Surface wipe (particulate)
OPERATING TEMP: -10 to 55°C (14 to 131°F)
PROTECTION RATING: IP20
POWER: External AC to DC Power Supply
Input: 100-240 VAC, ~1.8 A, 47-63 Hz
Output: 15 VDC, 10 A, 150W
BATTERY BACKUP: Up to 60 minutes
SOLID STATE DRIVE: 256 GB
OPERATING SYSTEM: Linux
DISPLAY: 10.4 in (26.4 cm) LCD monitor with resistive touch screen
SIGNAL PROCESSING: Recognition on multiple peaks and explosives - Output to 4 different display types, including bar graph or time-of-flight plasmagram
DETECTION CAPABILITIES: Explosives only, Narcotics only, Explosives/Narcotics Simultaneous. Aviation certified configurations will be explosive only
DATA TRANSFER: Two USB 2.0 ports; Ethernet port
