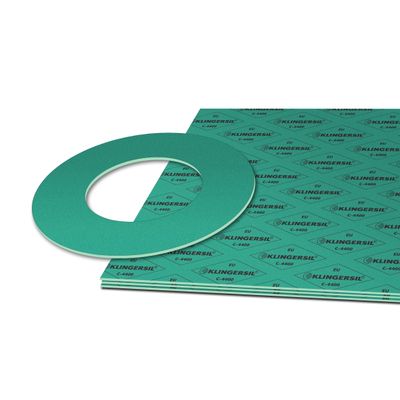

Model C-4400 -Fiber Gaskets
Application: Oil, water, steam, gases, salt solutions, fuels, organic and inorganic acids, lubricants and refrigerants. The market`s first asbestos gasket material and unconditionally the material that most references worldwide.A high-pressure material for wide industrial use.Supplied in sheets as well as die-cut gaskets on goal.
Type: KLINGERSIL C-4400
Material: Aramid fibre and NBR
Color: Green / Green
Compressibility ASTM F36A: 11%
Springback ASTM F36A: Min. 55%
Pressure stability DIN 52913 (2 mm): 25 N / mm²
Gas leakage DIN 3535/6: ≤0,2 ml / min.
Density: 1.6 g / cm3
Media resistance: see resistance table
Approvals: DIN DVGW
SVGW + ÖVGW
TA-air
BAM UVV 28
BS 7531 Grade Y
WRC + KTW + HTB
TÜV Poland
Germanischer Lloyd
Pressure and temperature chart:
Area 1: Taking into account the media and feed - no verification.
Area 2: We recommend contacting Klinger for advice.
Area 3: Contact Klinger for advice.
Type : KLINGERSIL C-4400
